CNC drilling machine C Series
CNC DRILLING
TECHNICAL DATA

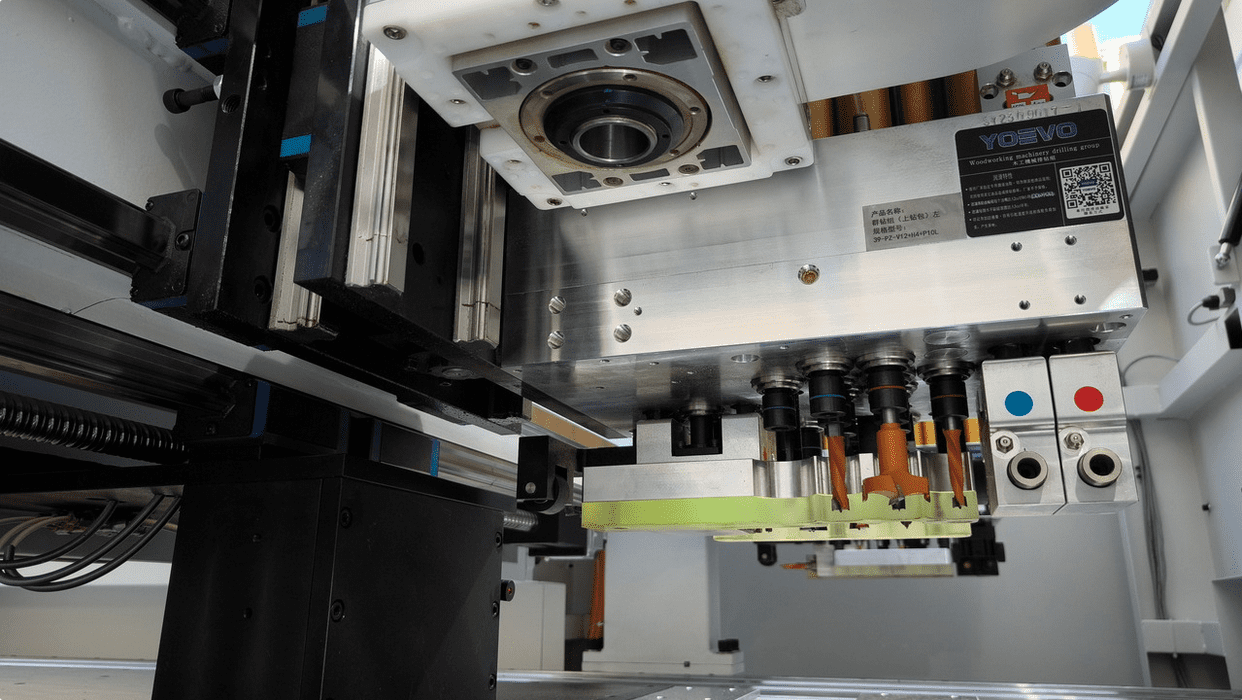

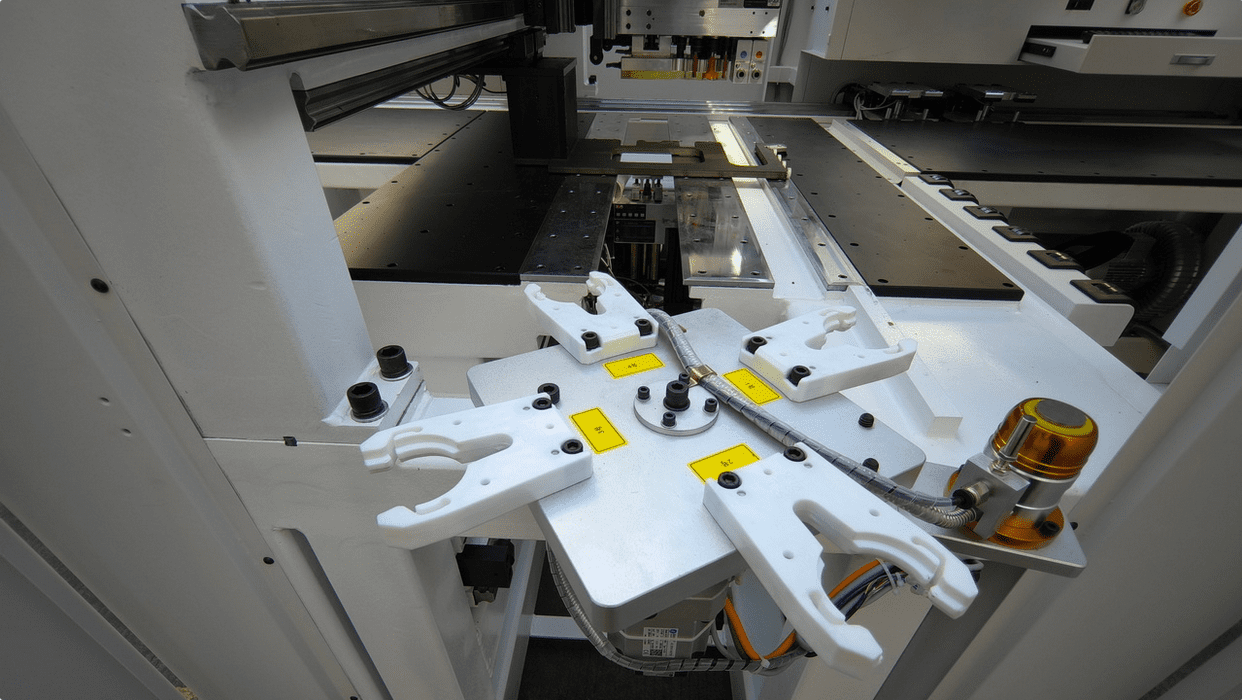

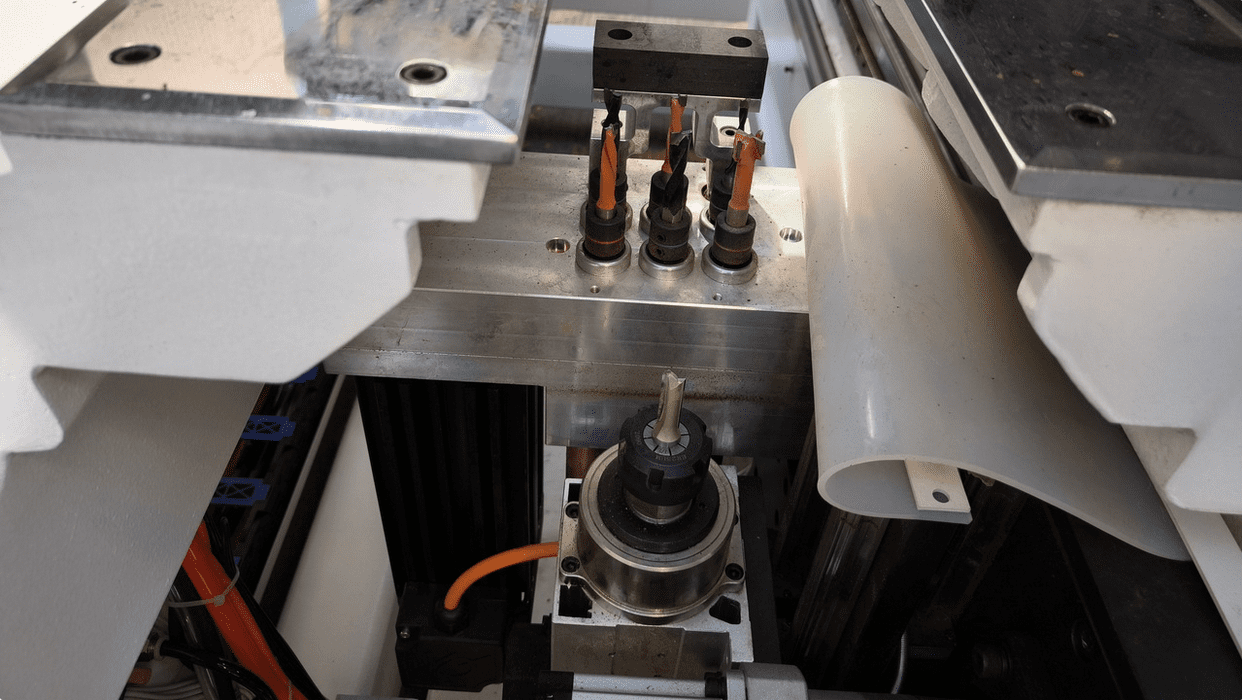

| Model | C6 | C6D |
| Panel length | 70-2750mm | |
| Panel width | 35-1200mm | |
| Panel thickness | 12-50mm | |
| Number of drill packs | Upper x1pcs & Lower x1pcs | Upper x2pcs & Lower x2pcs |
| Maximum speed X axis | 130m/min | |
| Maximum speed Y axis | 80m/min | |
| Maximum speed Z axis | 50m/min | |
| Maximum speed U axis | 130m/min | |
| Maximum speed V axis | 80m/min | |
| Maximum speed W axis | 50m/min | |
| Maximum speed A axis | 80m/min | |
| Upper horiz drills | 8pcs | |
| Upper vertical drills | 12pcs | |
| Upper auxiliary cylinders | 12pcs | |
| Top spindle power | – | 6kw ATC Spindle for 5 tools |
| Lower vertical drills | 6pcs | |
| Lower auxiliary cylinders | 12pcs | |
| Lower spindle power | 3,5kW | |
| Driving system | EtherCAT AC Servo | |
| Dust collector | 150mm x2pcs | |
| Gas pressure | 8bar | |
| Working voltage | 380V 50/60HZ | |
| Total power | 23kW | 26kW |
| Net weight | 3200kg | 3800kg |
| Overall dimension | 4300x2250x2200mm | |

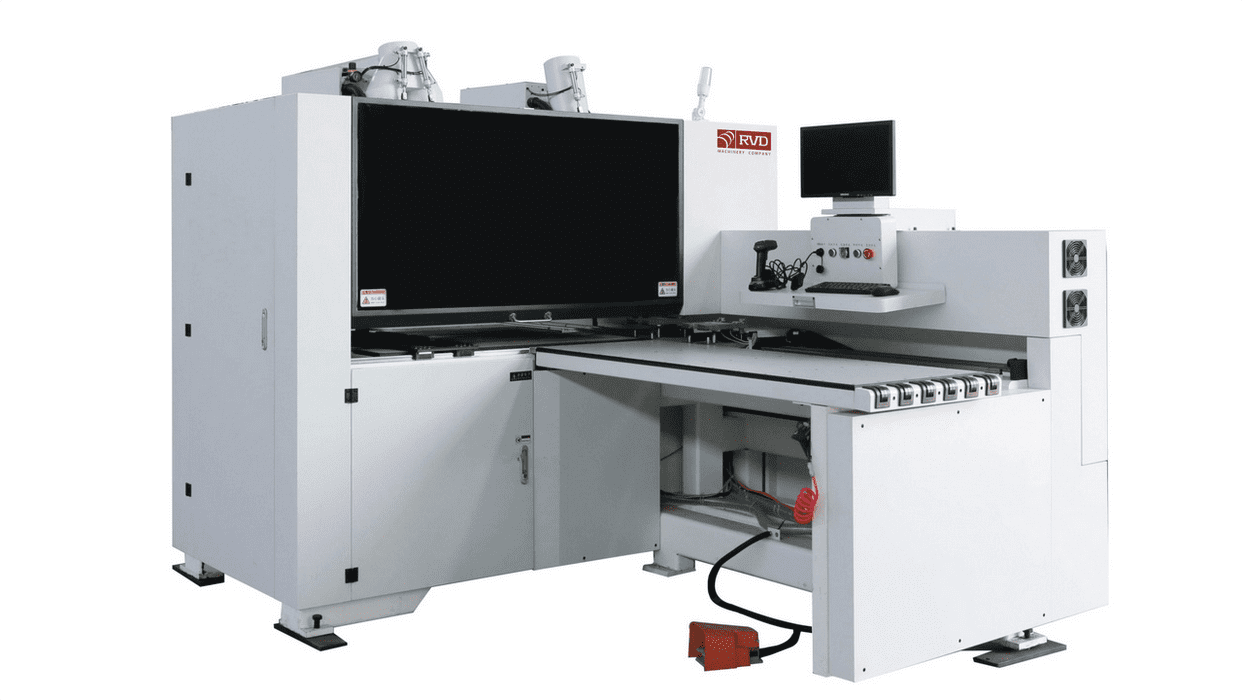

CNC six side drilling machine C series
Multi side drilling machine, so called six-sided drilling machine, is perfect to grant drilling on 6 sides of the panel, grooving and routing operations. Make quick work of complex drilling tasks with this CNC drilling machine – featuring an array of innovative capabilities and an incredibly intuitive interface.

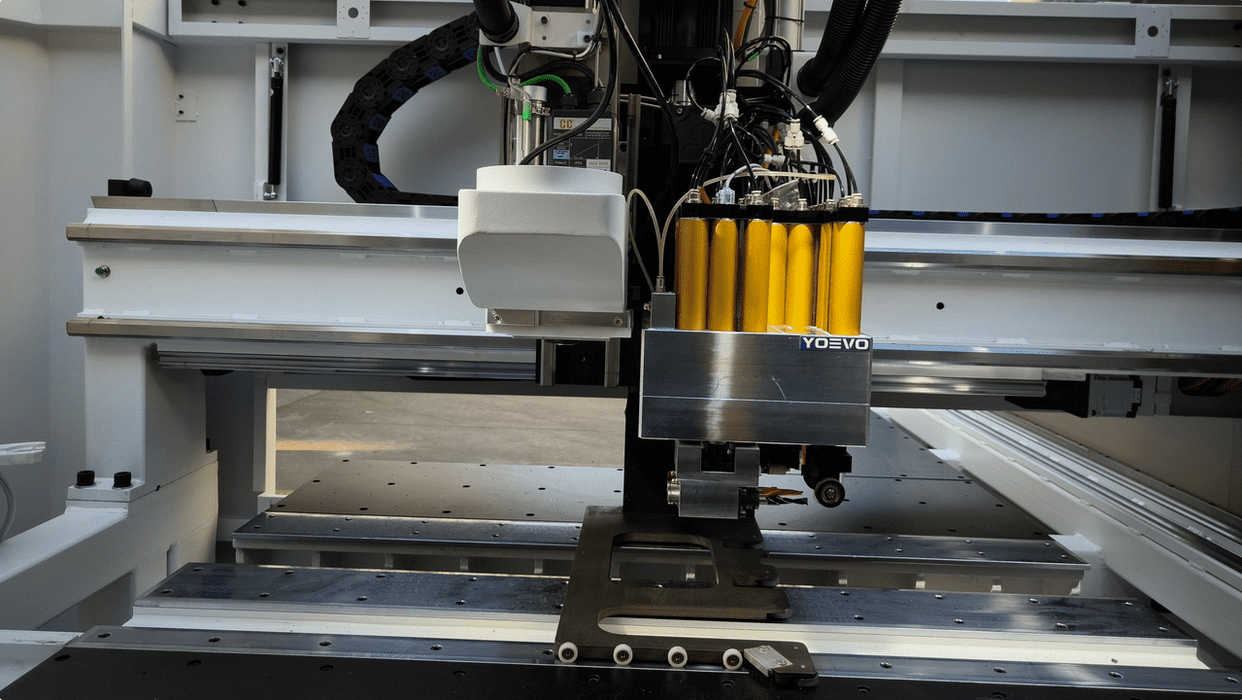

- Patented intelligent three-level lifting gripper, improve the drilling accuracy for small boards and avoid scratches on the board surface.
- The operating system is compatible with MPR, BAN, XML, DXF and other formats, applicable to any design software.
- Drilling on six sides at one time, slotting on the front and back sides
- Workbench with air flotation holes prevent damage of board surface.
