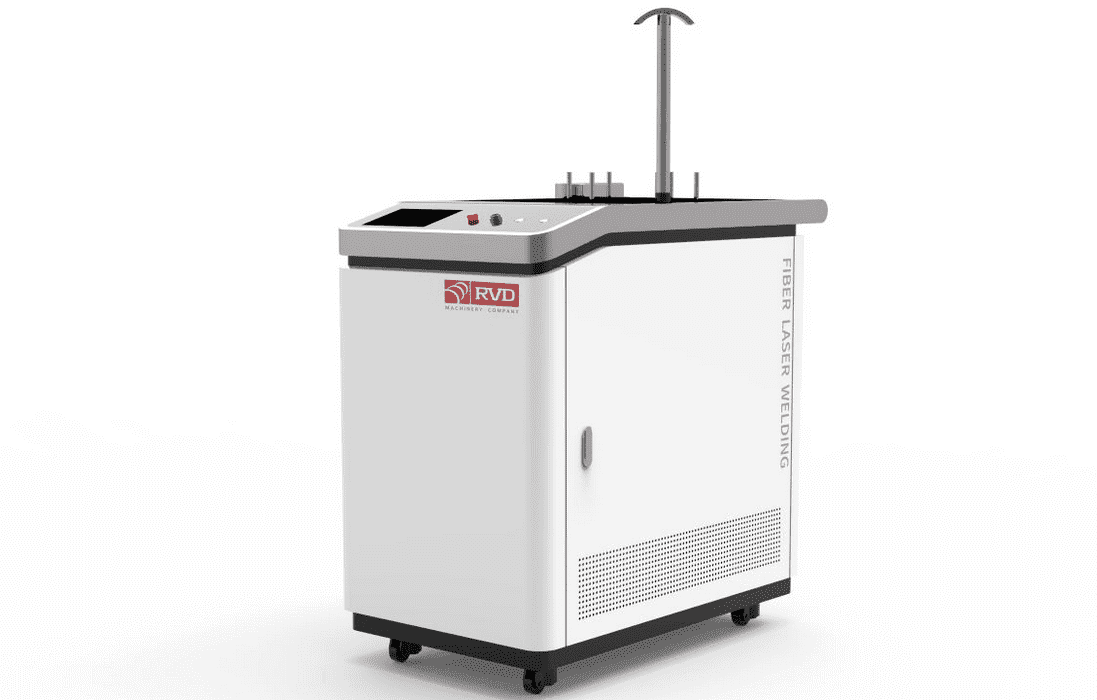

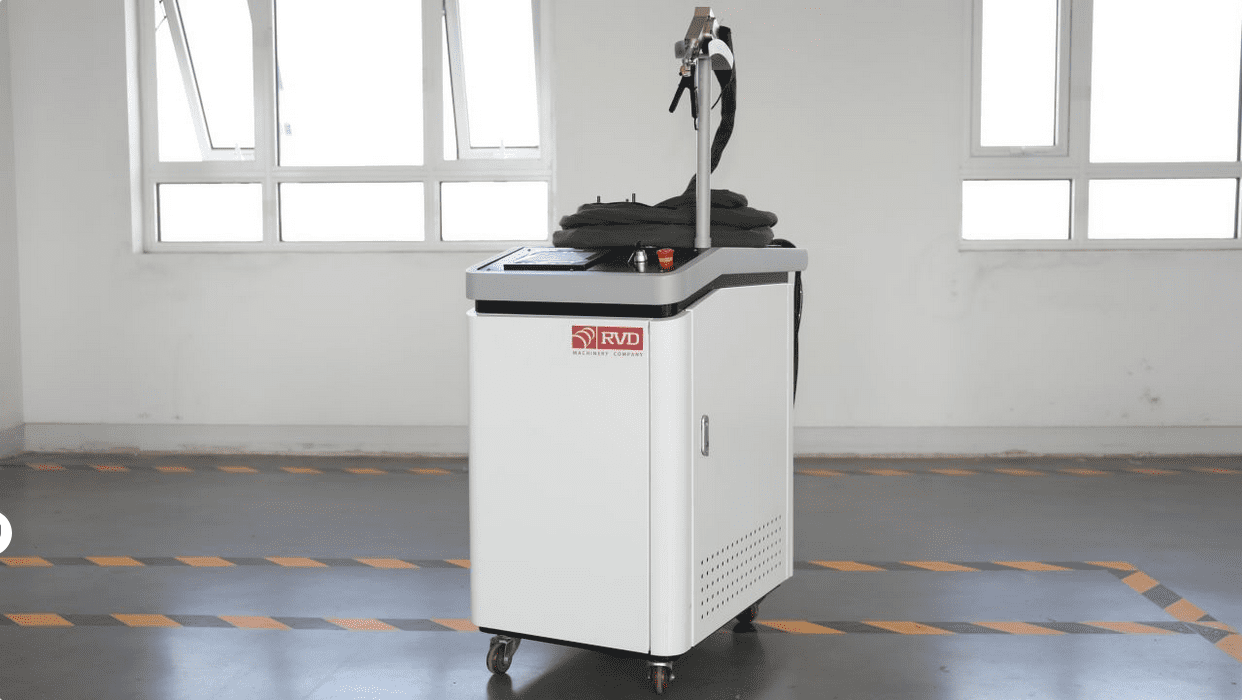

Fiber laser welder
Industrial fiber lasers
€5500
TECHNICAL DATA
| Model | LCW1500 | LCW2000 | LCW3000 |
| Laser power | 1500W | 2000W | 3000W |
| Laser wave length | 1080nm | ||
| Fiber length | 10-20m | ||
| Cooling type | Water | ||
| Adjustment | 10-100% | ||
| Working voltage | 220V/50Hz or 380V/50Hz | 380V/50Hz | |

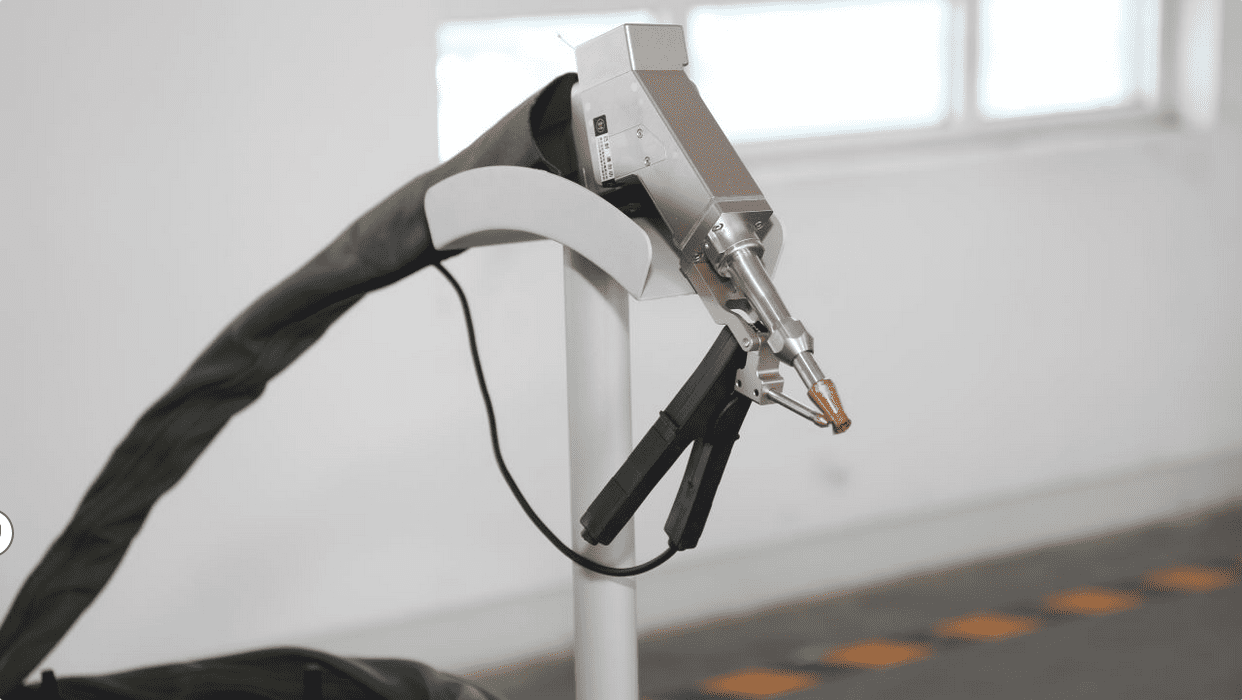

| Laser gun weight | 0.8kg | ||
| Dimension | 910x540x1100mm | 1210x650x1200mm | |

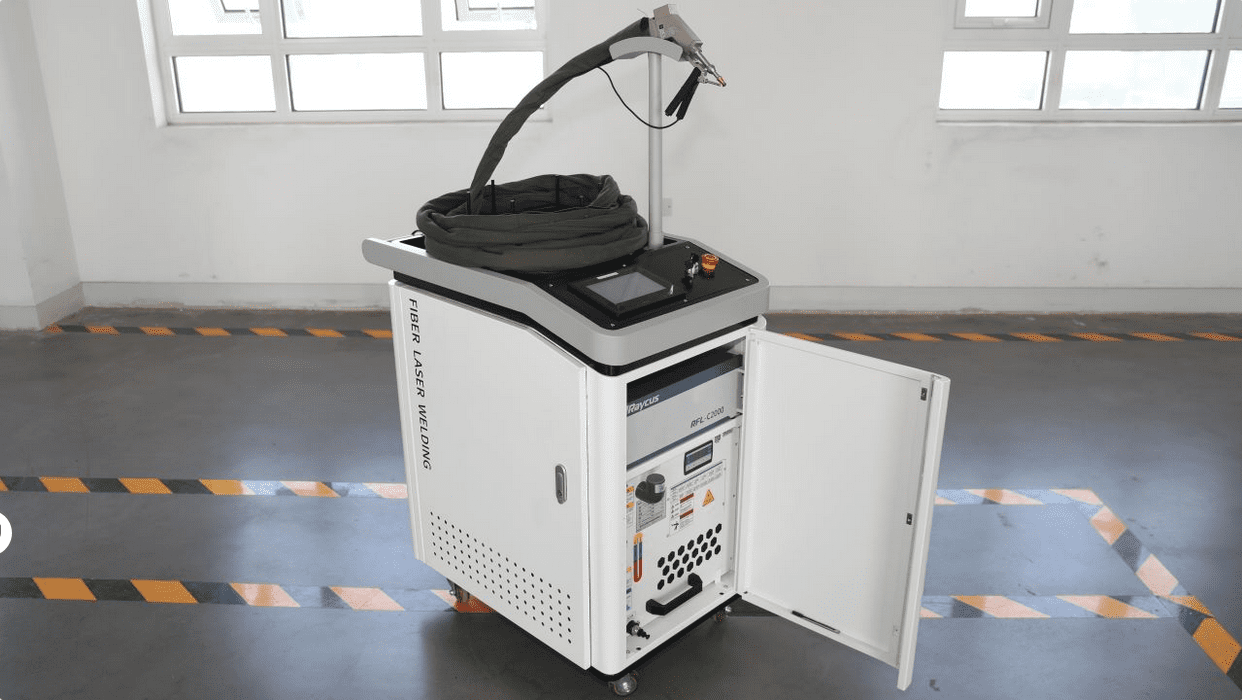

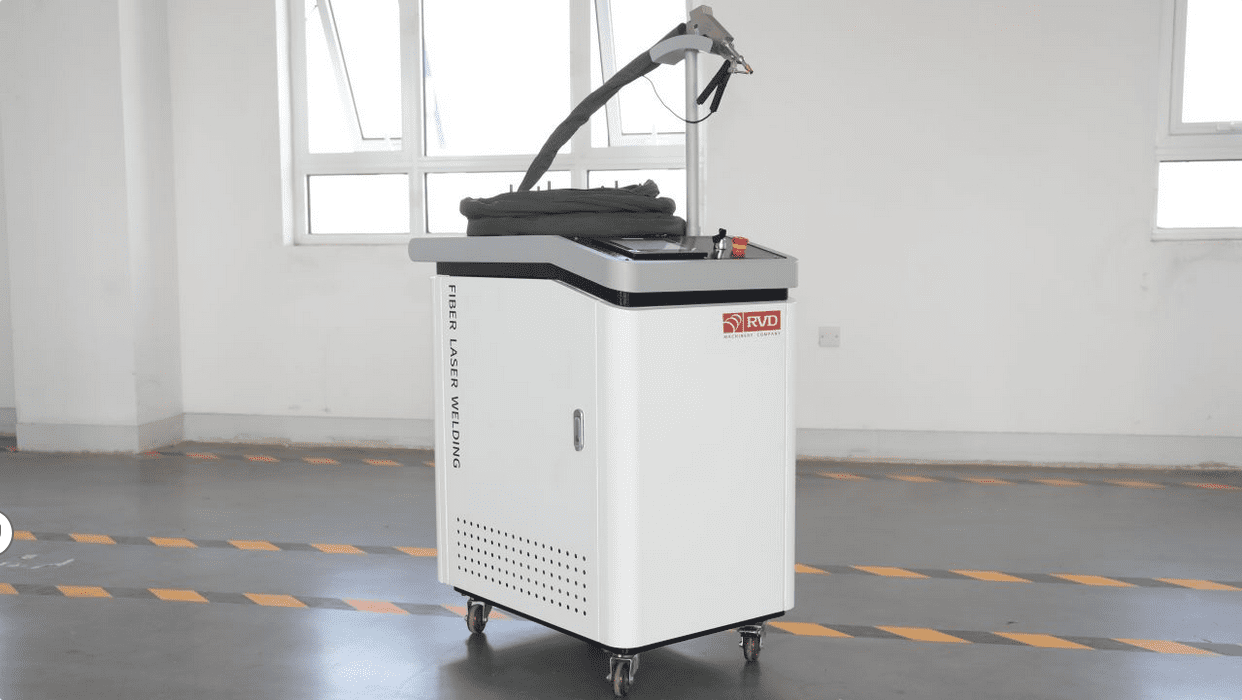

Handheld welding, cleaning, cutting laser LCW series
Three function in one machine.

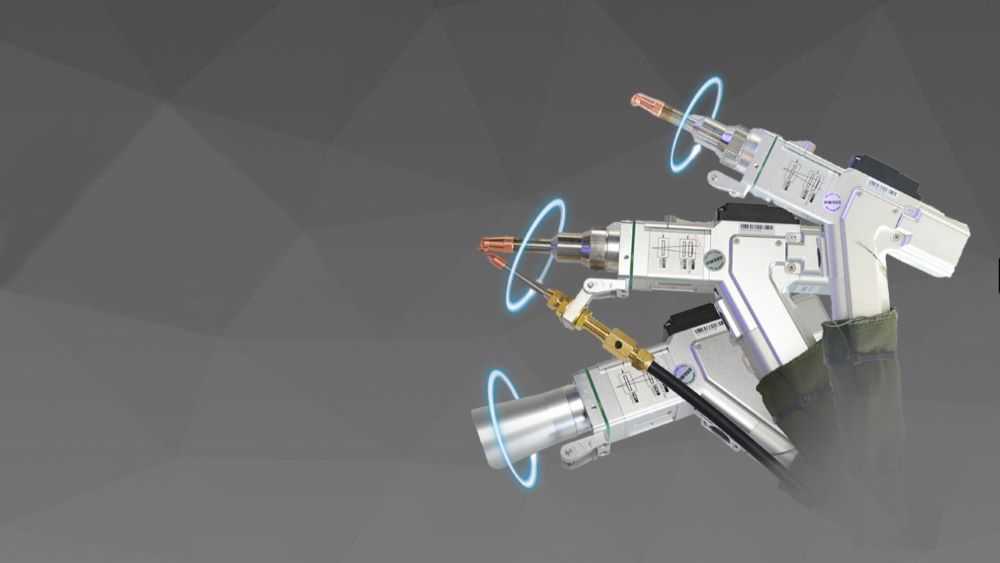

Realize the three functions of cleaning, welding and cutting at same time uses the power of fiber laser. The operation is simple, the head can be replaced in 15s.
Easy to learn.
Only a few hours for beginners to get started. Realize the three functions of cleaning, welding and cutting at the same time uses the power of your laser for pre and post weld cleaning.
Intelligent Operating System.

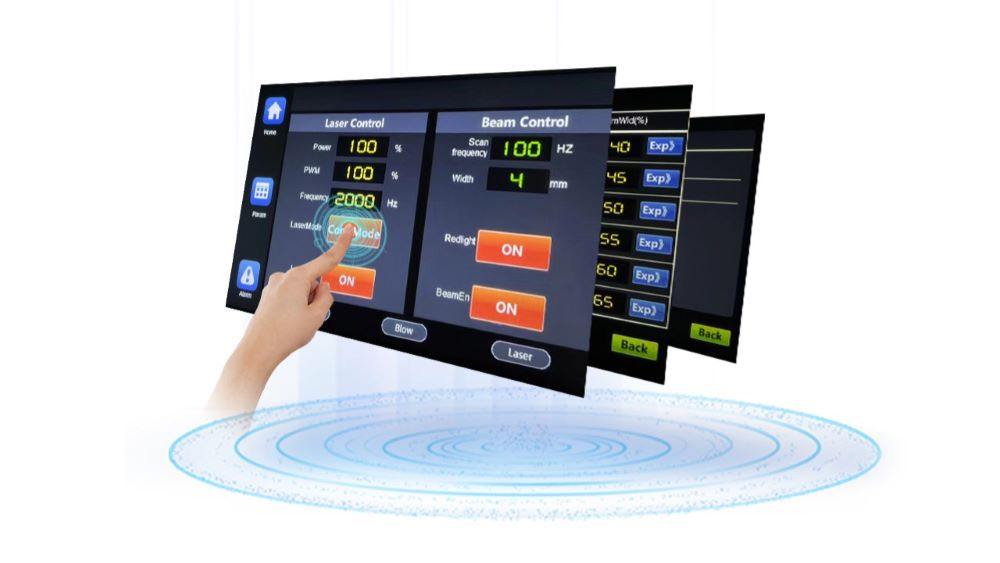

Adopt touch screen design, easy and quick to click and set, with real-time fault reading, feedback and alarm functions.There is a process parameter library, which can realize the rapid storage and recall of cleaning process parameters.Remote controller at the welder side for multi-parameters adjustment. Save time and effort, easy to operate.
Various welding methods.
The welding seam is smooth and beautiful, and the welding quality is good. It can realize spot welding, continuous spot welding, fish scale welding, full welding, and continuous full welding.
Wire Feeding System.
Used for low carbon steel, stainless steel, aluminum and non-ferrous metals and alloys. Wire feed speed range 40 – 600 cm/min. Wire diameter capacity 0.8, 1.0, 1.2 and 1.6 mm.
