Fiber laser P series
Industrial fiber lasers
TECHNICAL DATA
| Model | LF3015P |
| Working area X, Y | 1500x3000mm |
| Laser power | 1500 – 6000W |
| Dimensions | 4.48×2.77×1.95m |
| Positioning Accuracy | ±0.03mm |
| Reposition Accuracy | ±0.02mm |
| Max. moving speed | 80m/min |
| Maximum acceleration | 1.0G |

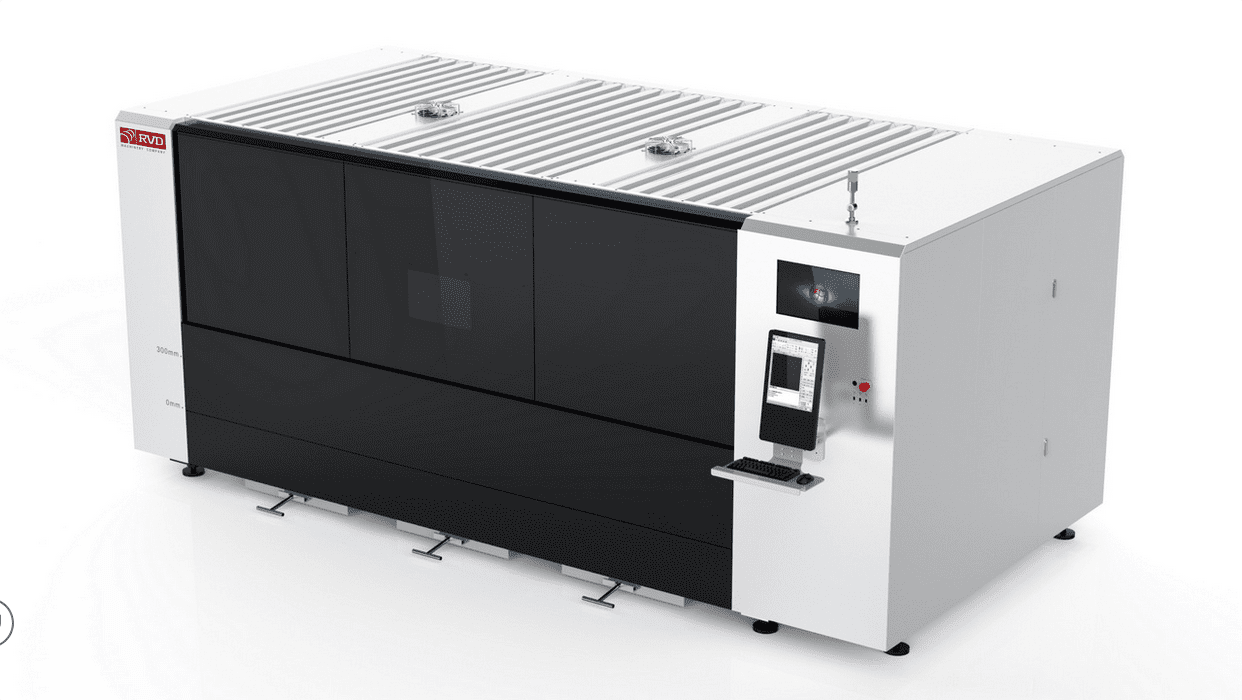

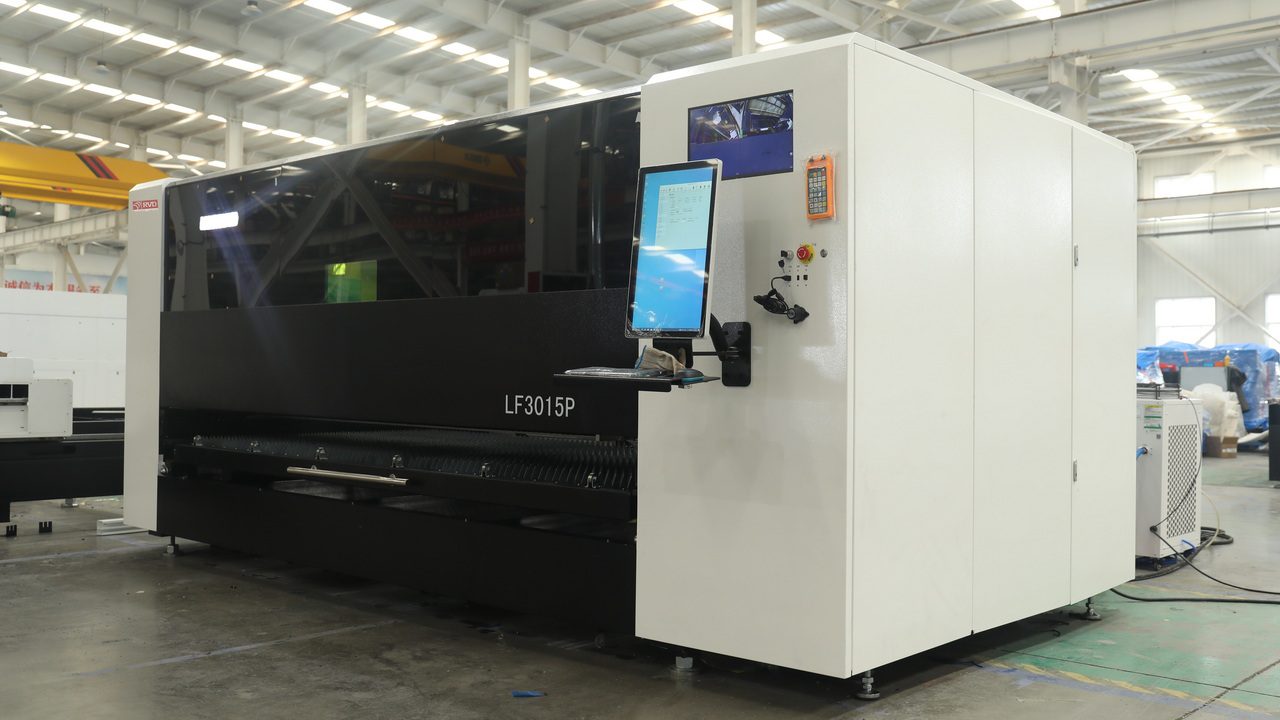

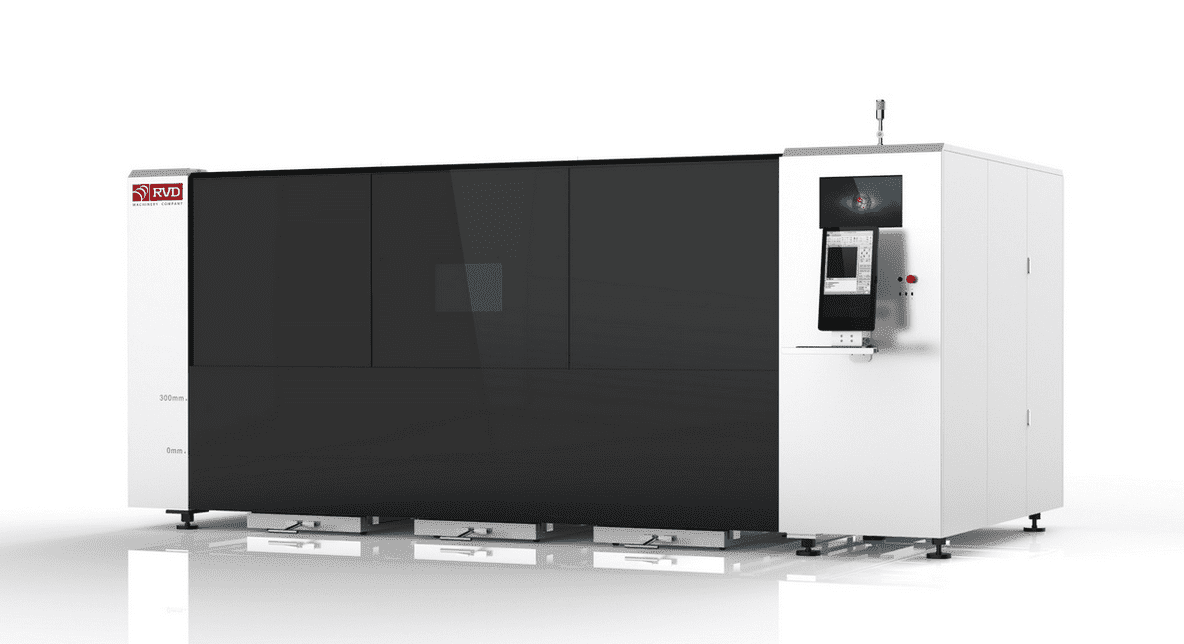

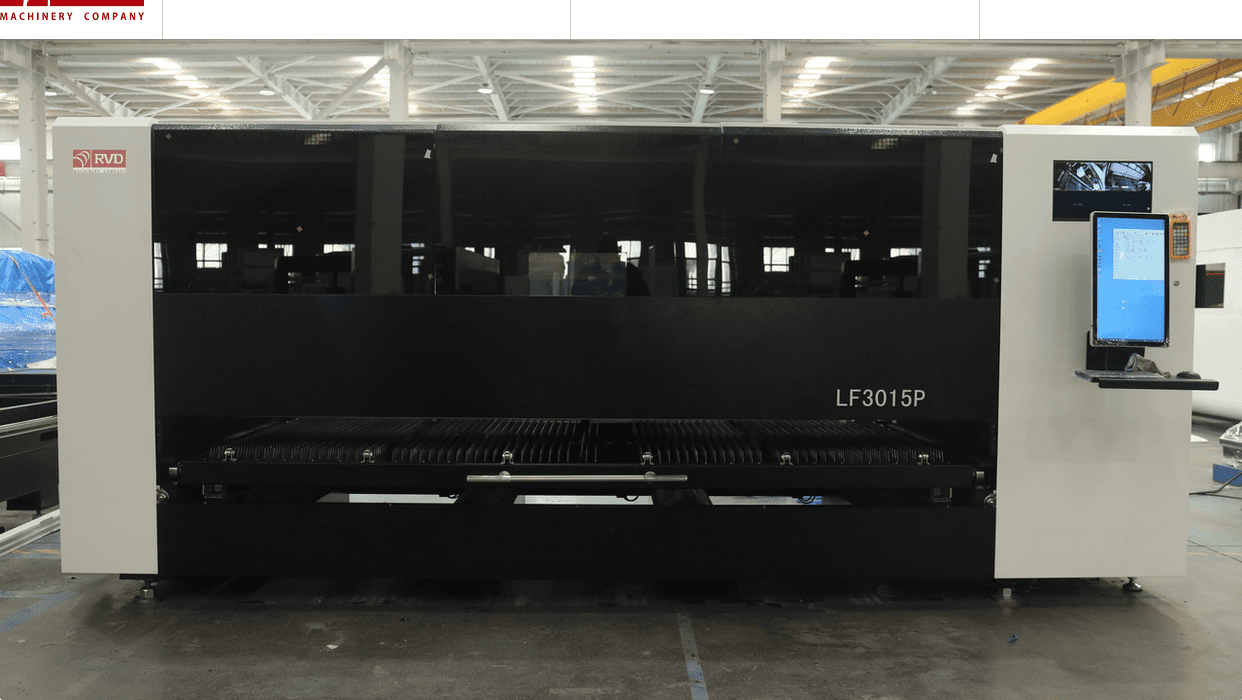

Whole covered fiber laser cutting machine RVD P series

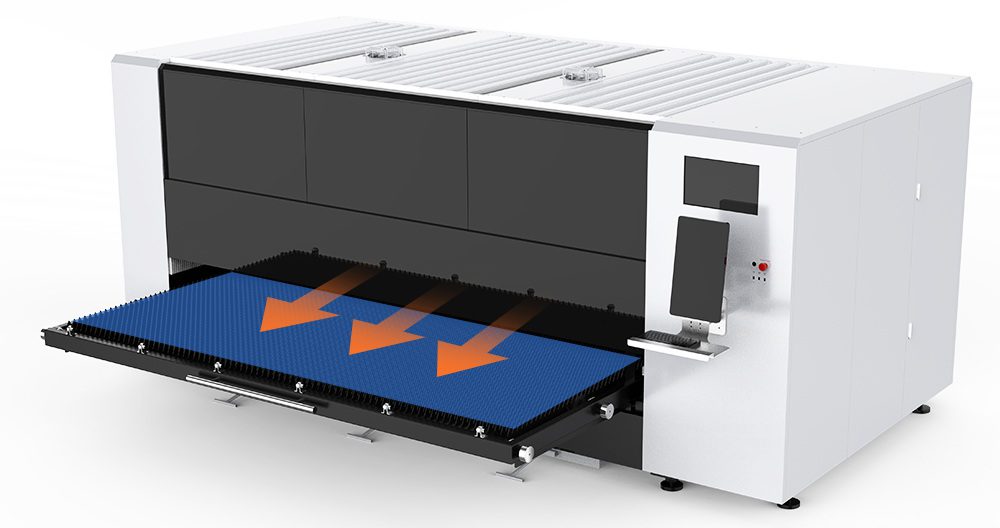

Pull-out Platform. The Pull-out Platform can pull out the entire working width, and the whole plate can be loaded vertically, which is more convenient for loading. After the cutting is completed, there is no need to probe into the equipment to pick up the material, which is more convenient.Pull-out Platform can lock the platform at any position within the range of the pull-out stroke of the platform.

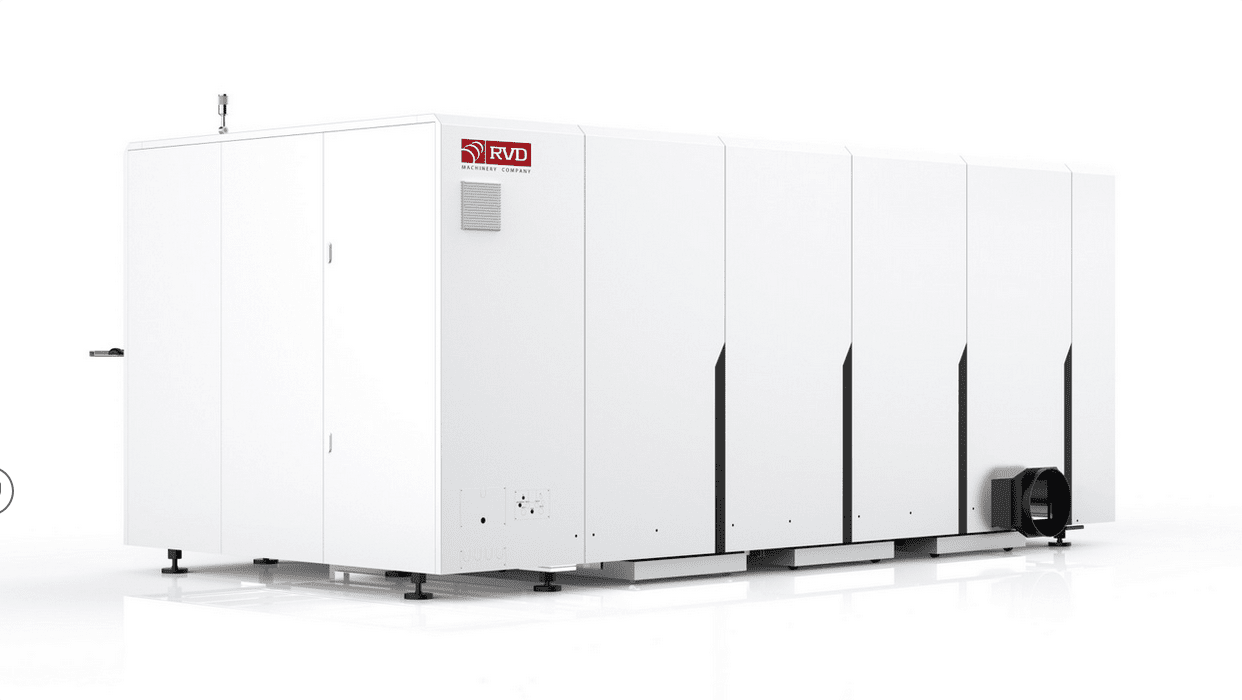

With a Fully Enclosed Design.The fully enclosed cover has beautiful appearance, good smoke exhaust effect, hygiene and high safety, which can meet the requirements of strict safety standards.

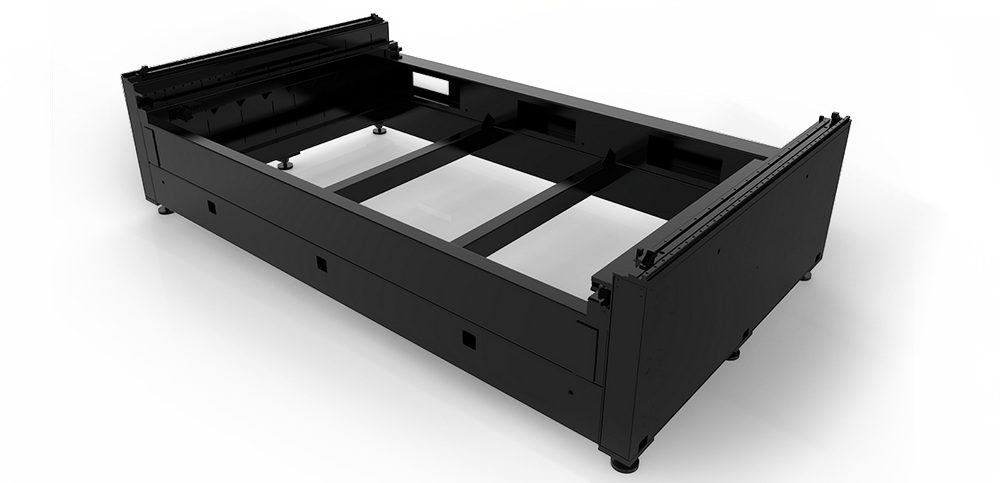

Welded Bed With Mortise-and-tenon joint. The bed is welded by high-quality steel plate and pipe. The mortise and tenon welding process ensure that the bed has sufficient structural stability, shock resistance and no deformation for long time.

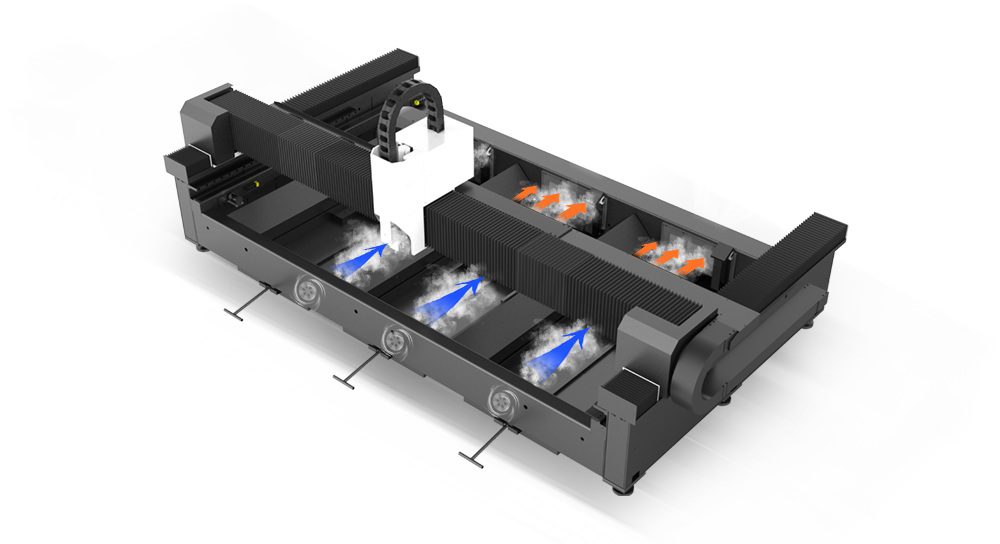

Segmented Smoke Extraction. Adopting a new smoke exhaust method of two blowing and one suction segmental smoke exhaust, the smoke exhaust effect is better.
