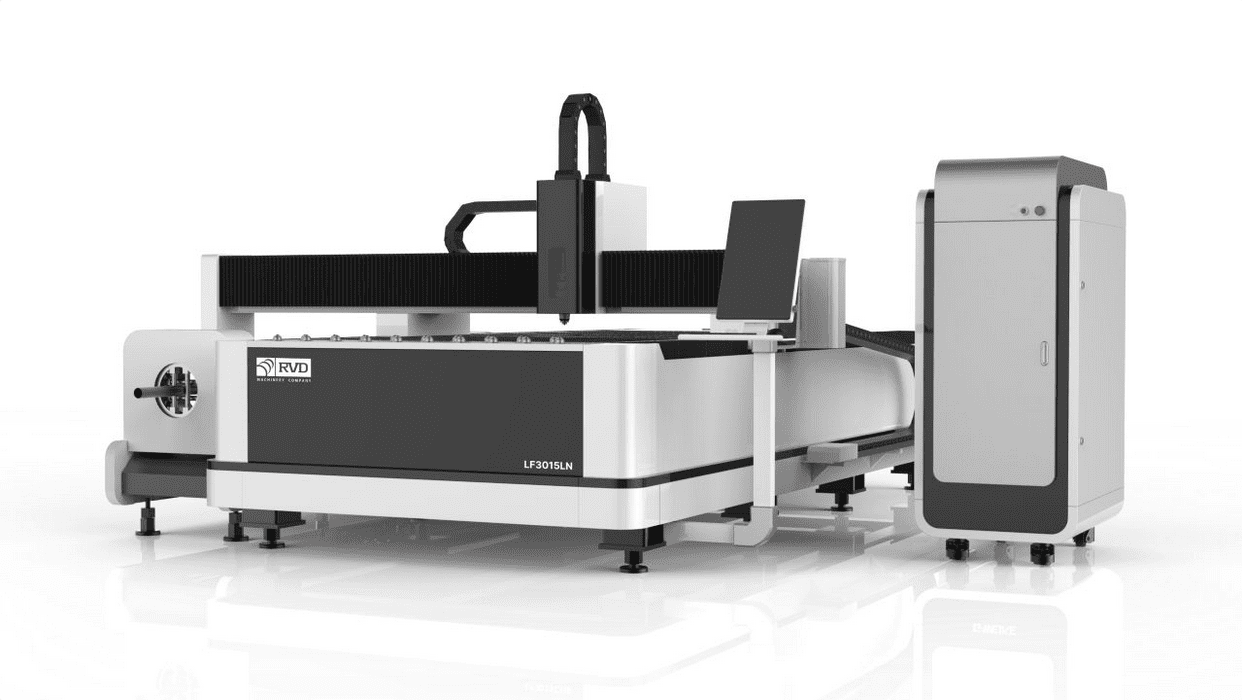

Fiber laser LNR series
Industrial fiber lasers
TECHNICAL DATA
| Model | LF3015LN | LF6025LN |
| Working area X, Y | 1520x3050mm | 2530x6050mm |
| Laser power | 1500 – 3000W | |
| Dimensions | 4.52×3.98×1.98m | 7.80×5.08×2.00m |
| Positioning Accuracy | ±0.05mm | |
| Reposition Accuracy | ±0.03mm | |
| Max. moving speed | 80m/min | |
| Maximum acceleration | 1G | |
| Round pipe diameter | 20-240mm | |
| Square pipe diameter | 20-240mm | |
| Maximum pipe length | 3m | 6m |

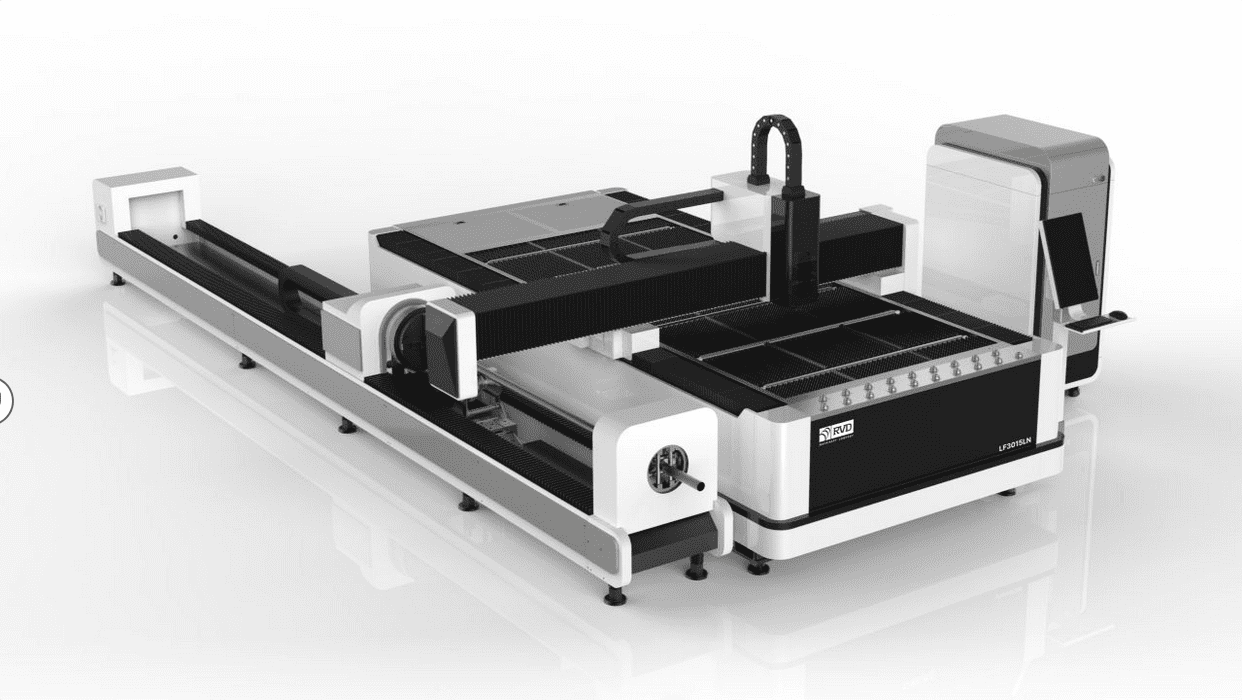

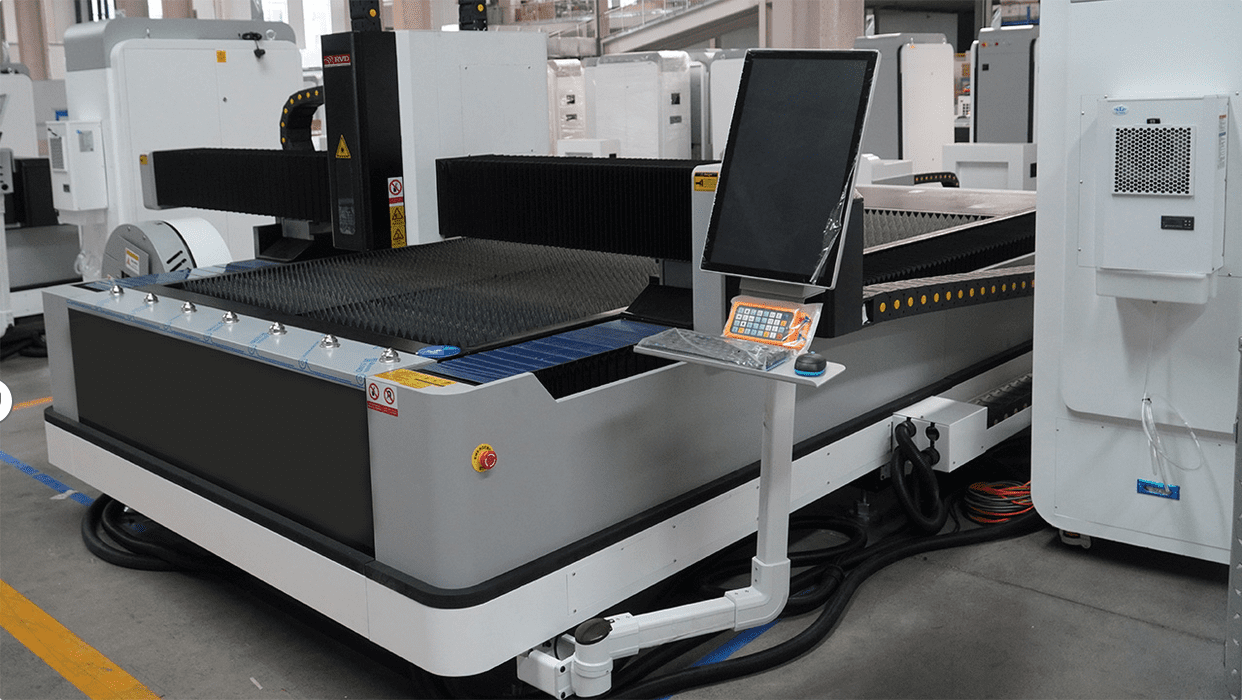

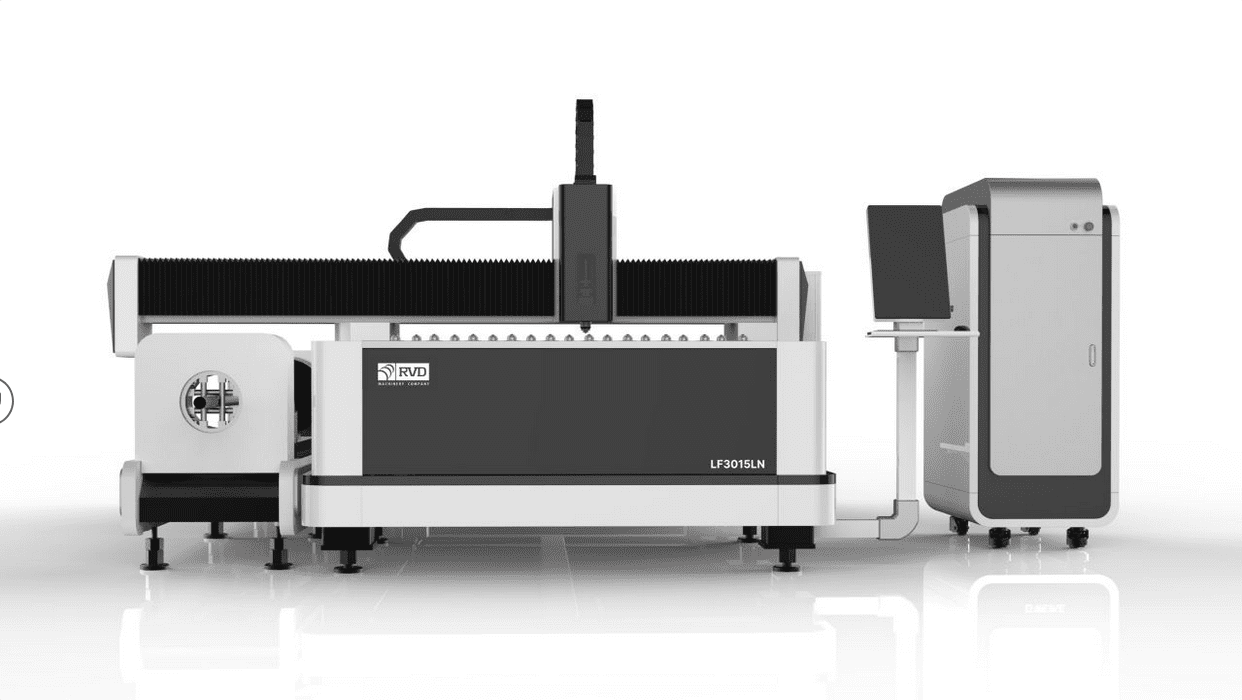

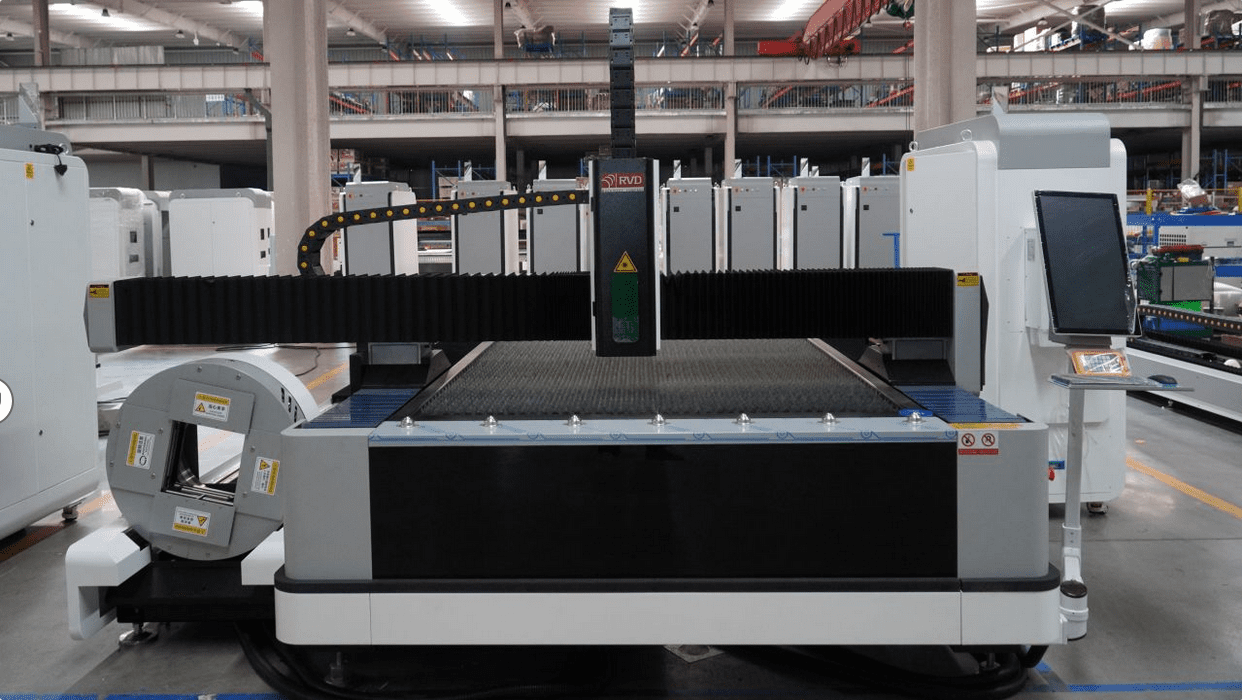

Laser cutting machine for metal RVD LNR series

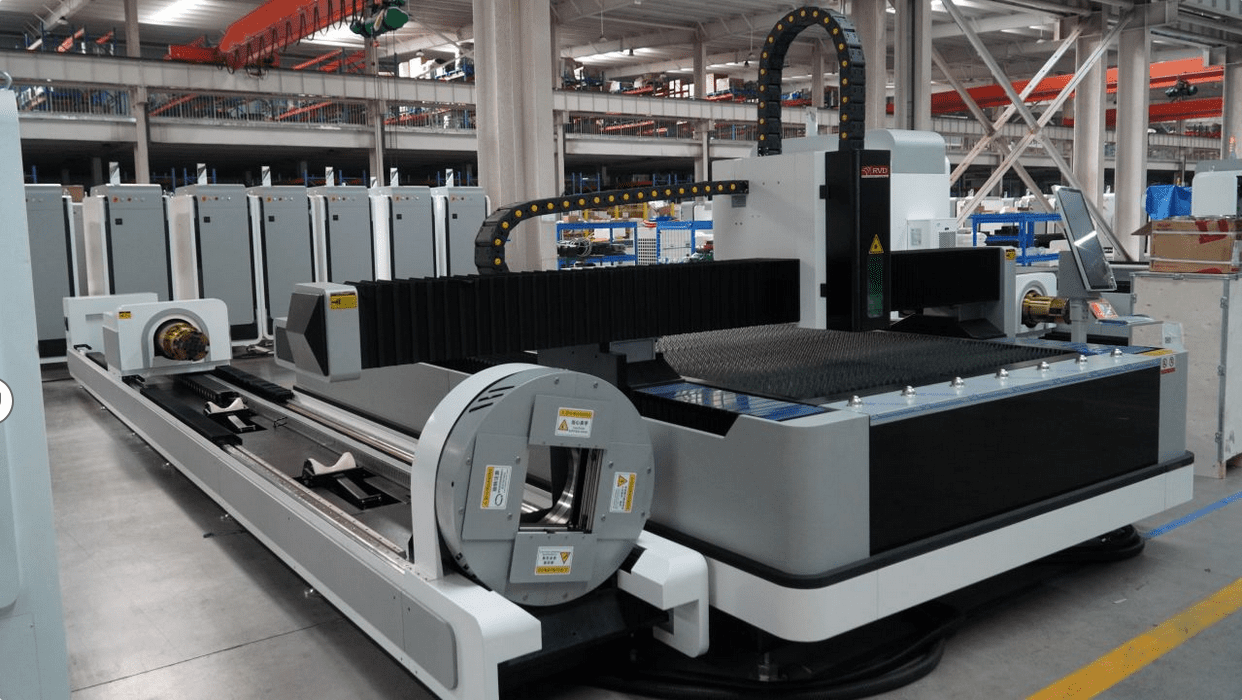

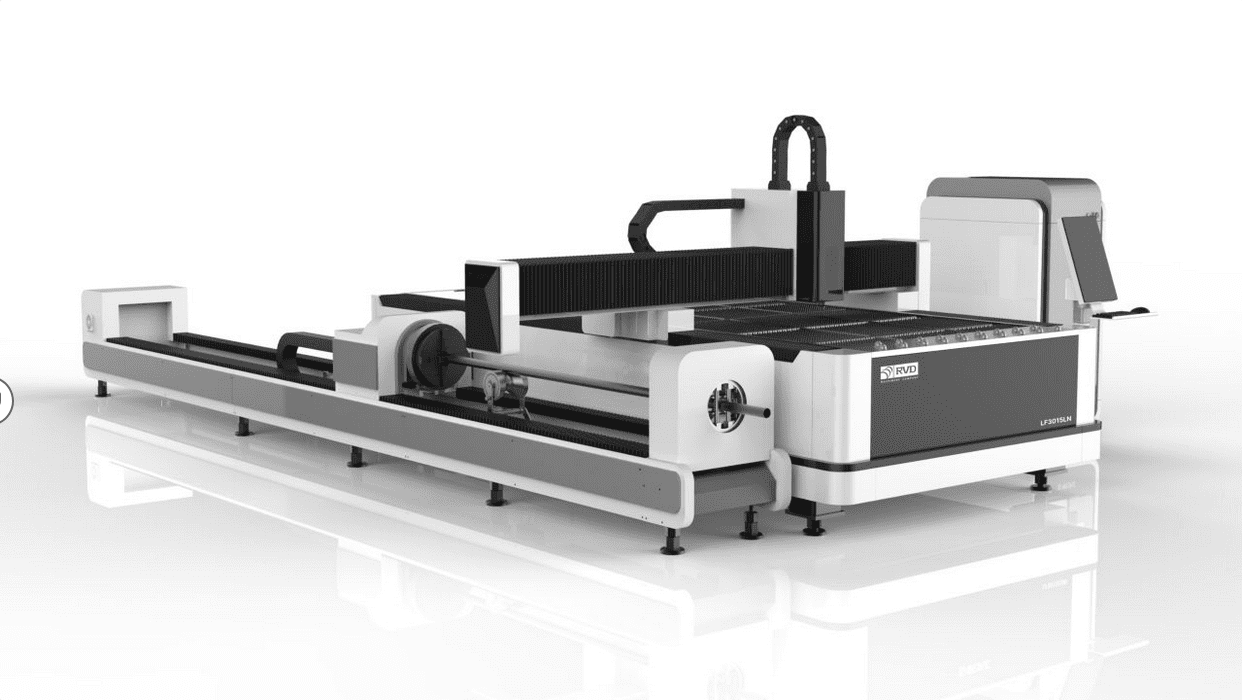

Laser sheet-tube integrated machine. Economical and practical – one device meets the dual requirements of cutting pipes and sheets, saving costs and space.

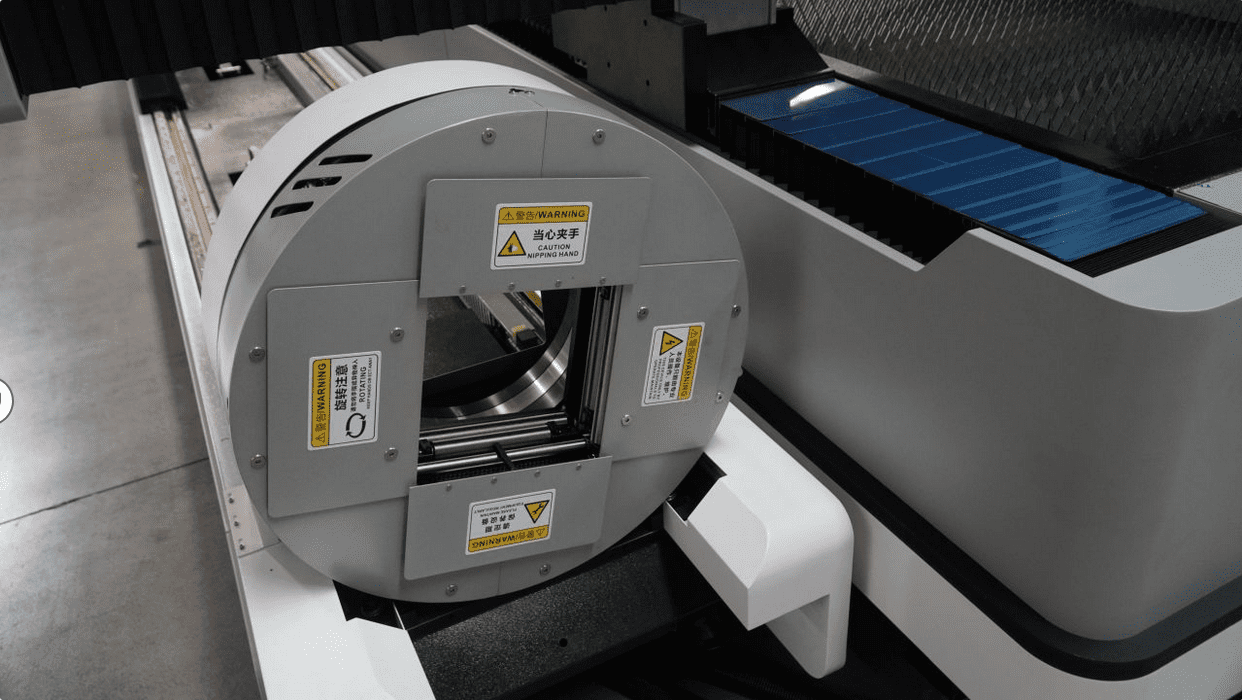

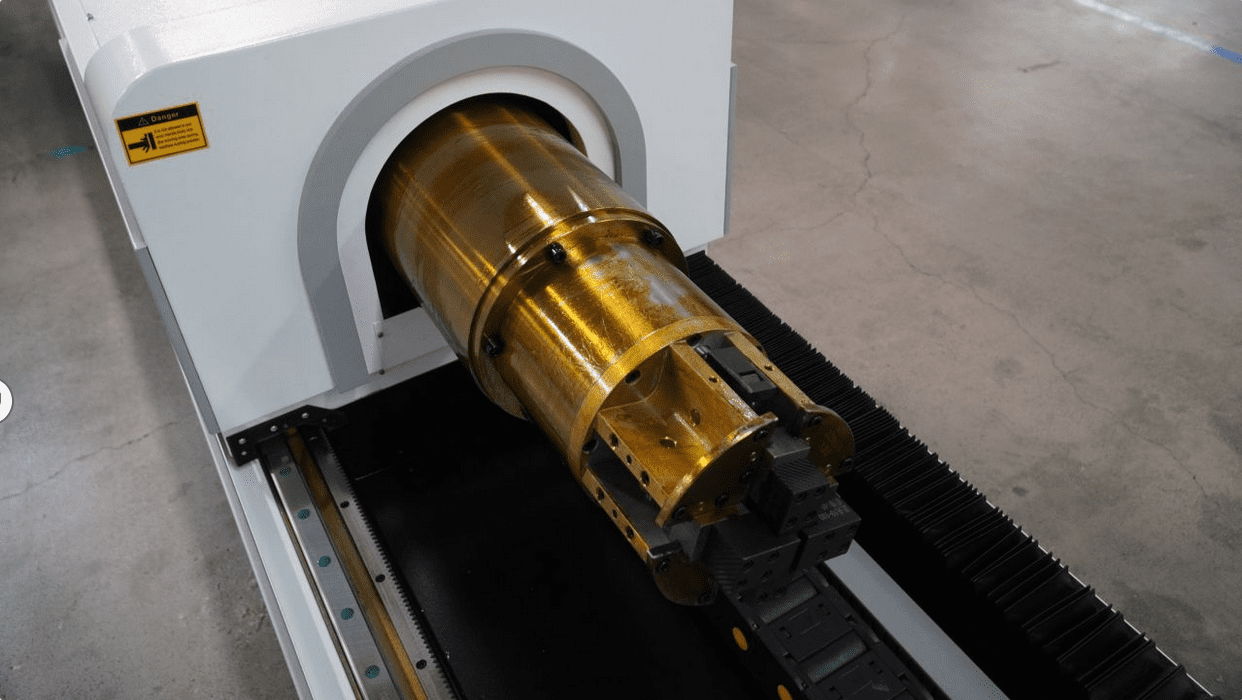

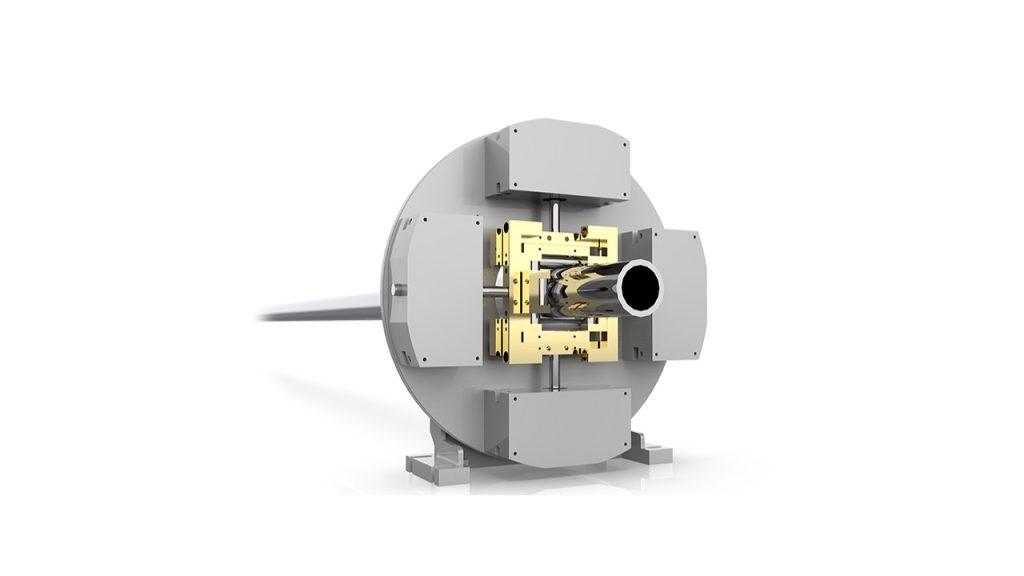

Clamp design. It adopts an pneumatic clamp design on both sides and it can modulate the center automatically. The diagonal adjustment range for round pipes 12-240mm and for square pipes 20-240mm.

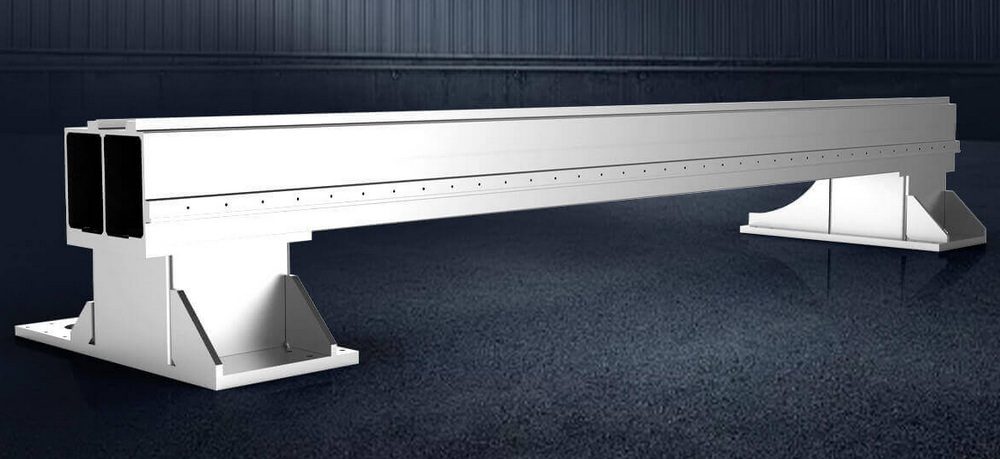

Aviation Aluminum Beam. It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Light weight, high strength.

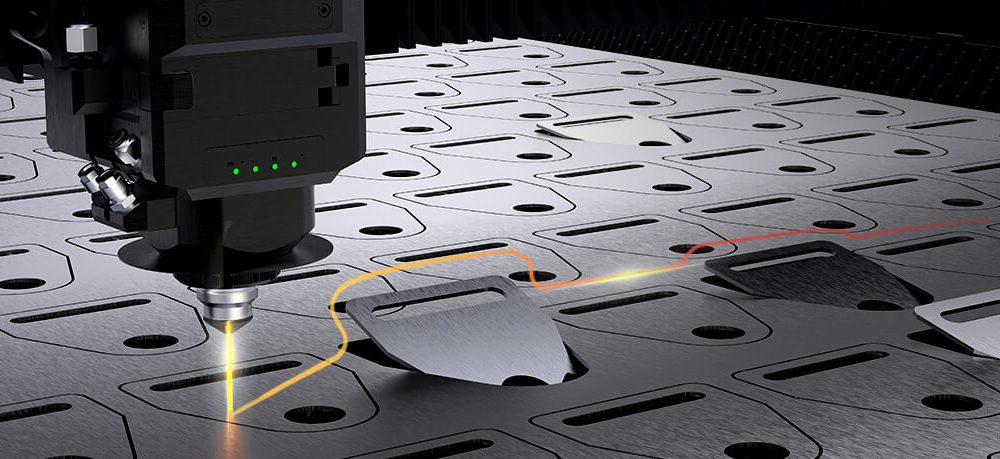

Collision sensing. Effectively reduces the risk of cutting head collisions due to workpiece warping.

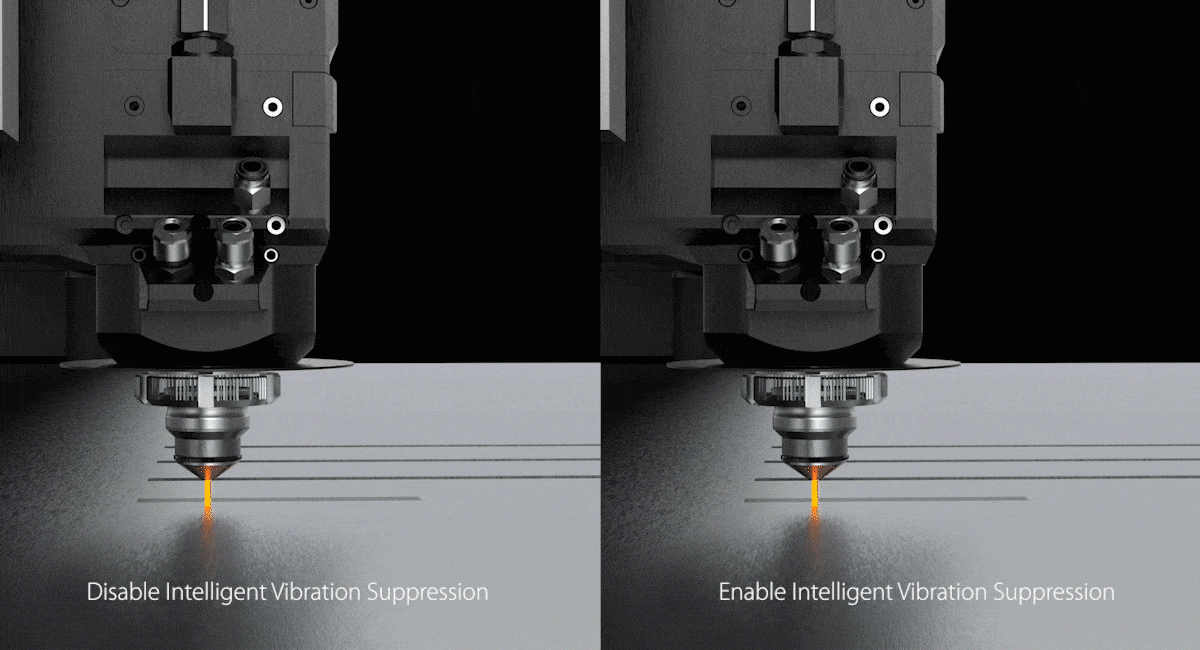

Intelligent vibration suppression. Z-axis real-time automatic adjustment, reducing cutting jitter anomalies.
