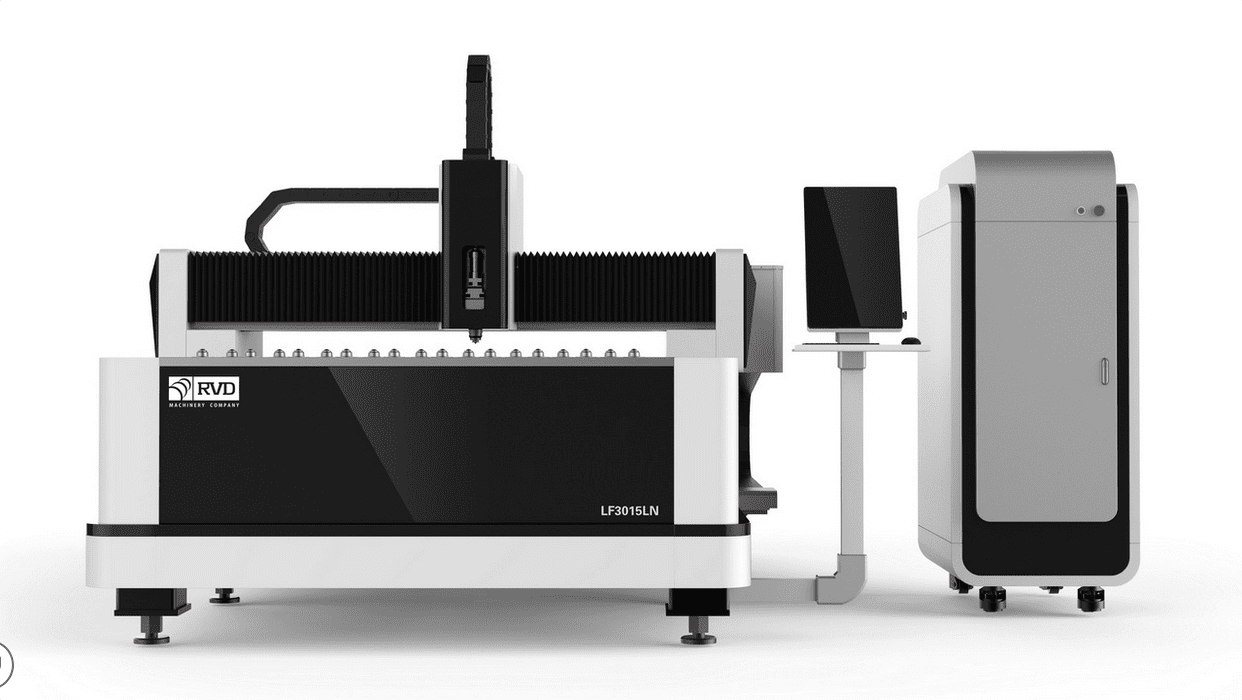

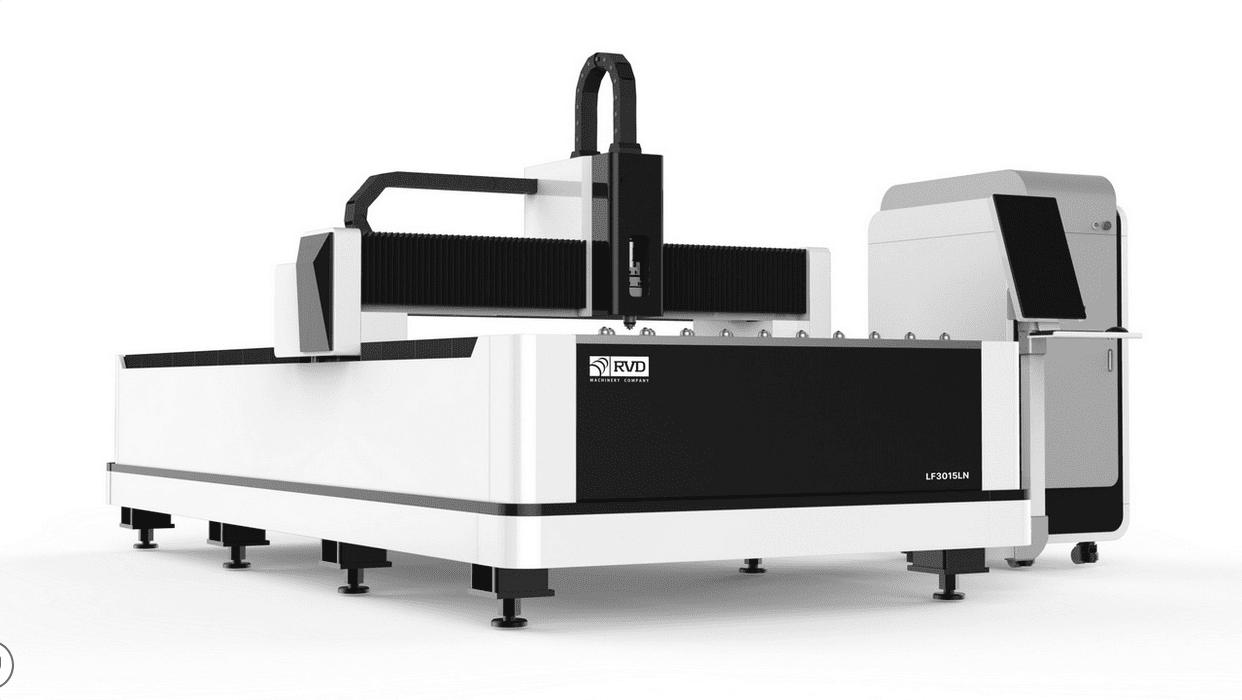

Fiber laser LN series
Industrial fiber lasers
TECHNICAL DATA
| Model | LF3015LN | LF6025LN |

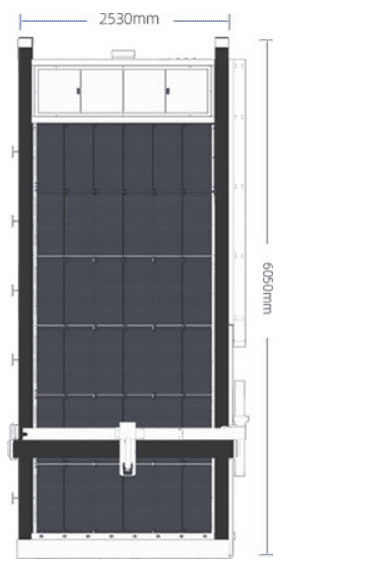

| Working area X, Y | 1520x3050mm | 2530x6050mm |
| Laser power | 1500 – 3000W | |
| Dimensions | 4.48×2.77×1.95m | 7.80×4.10×2.00m |
| Positioning Accuracy | ±0.05mm | |
| Reposition Accuracy | ±0.03mm | |
| Max. moving speed | 80m/min | |
| Maximum acceleration | 0.8G | |

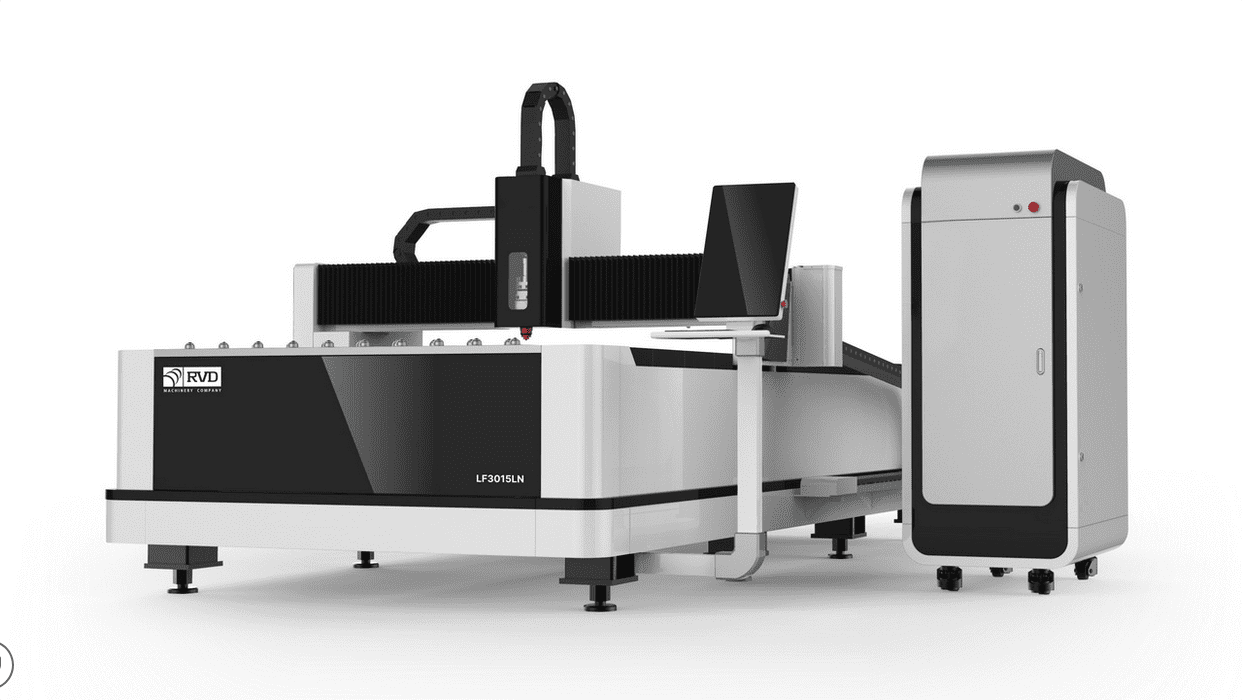

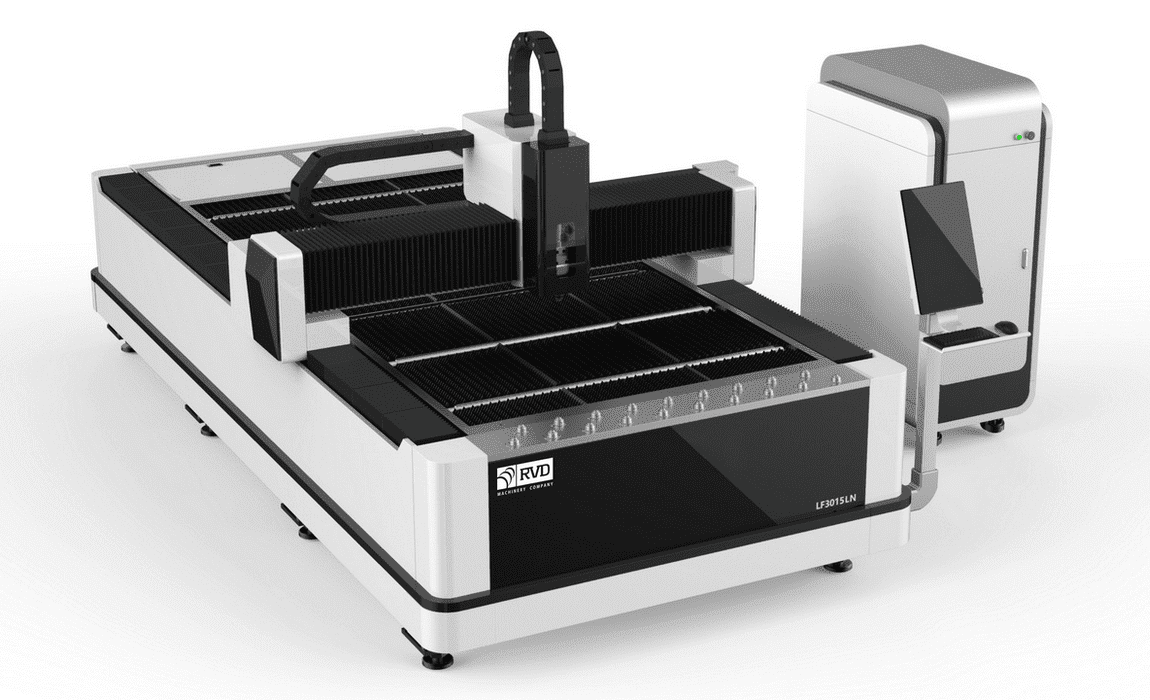

Laser cutting machine for metal RVD LN series

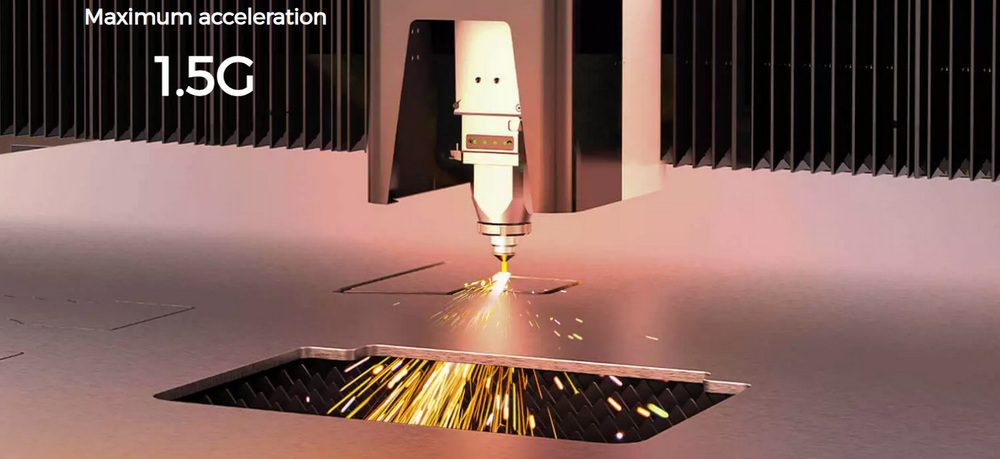

Maximum acceleration 1,5G!

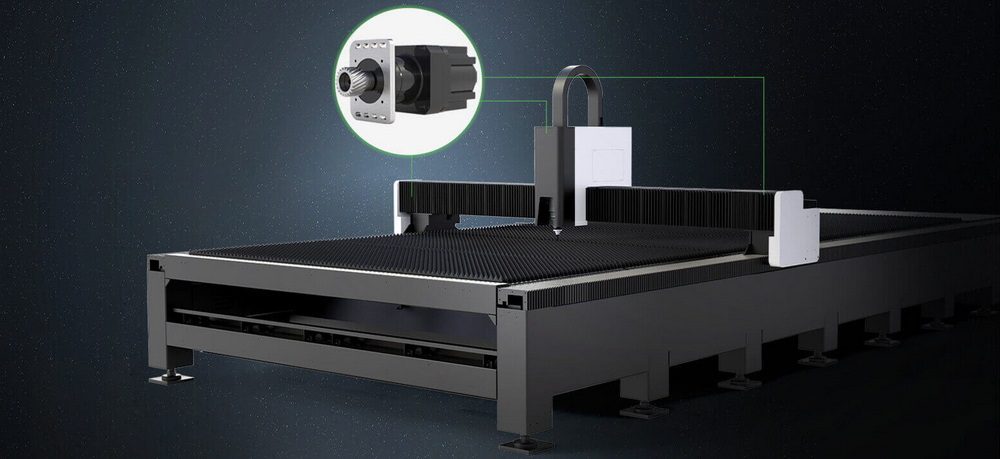

Dual Bus Servo Motor Dynamic. Performance Improved by 30%. The whole machine is equipped with dual bus motors. The whole machine has a dry running speed of 120m/min and an acceleration of 1.5G, achieving leading dynamic performance.

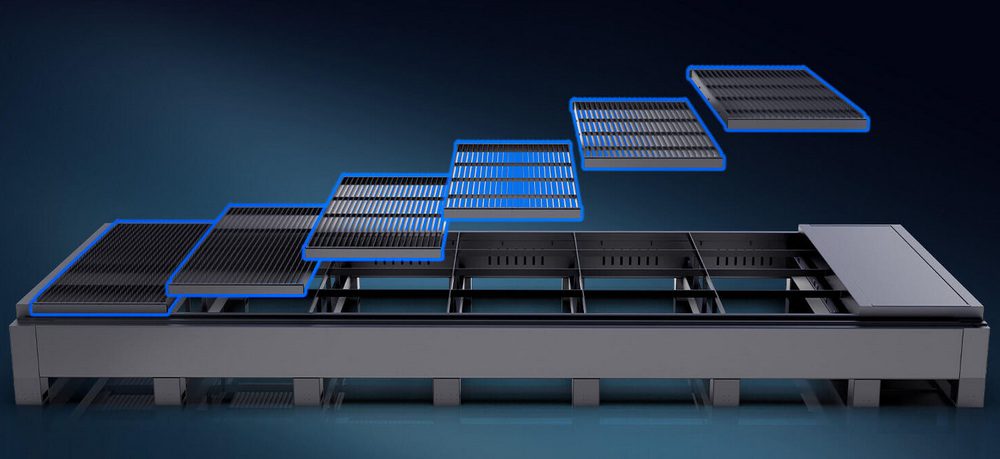

Modular tabletop. Ease of transportation while reducing later maintenance costs.
Aviation Aluminum Beam. It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Light weight, high strength.
Collision sensing. Effectively reduces the risk of cutting head collisions due to workpiece warping.
Intelligent vibration suppression. Z-axis real-time automatic adjustment, reducing cutting jitter anomalies.
