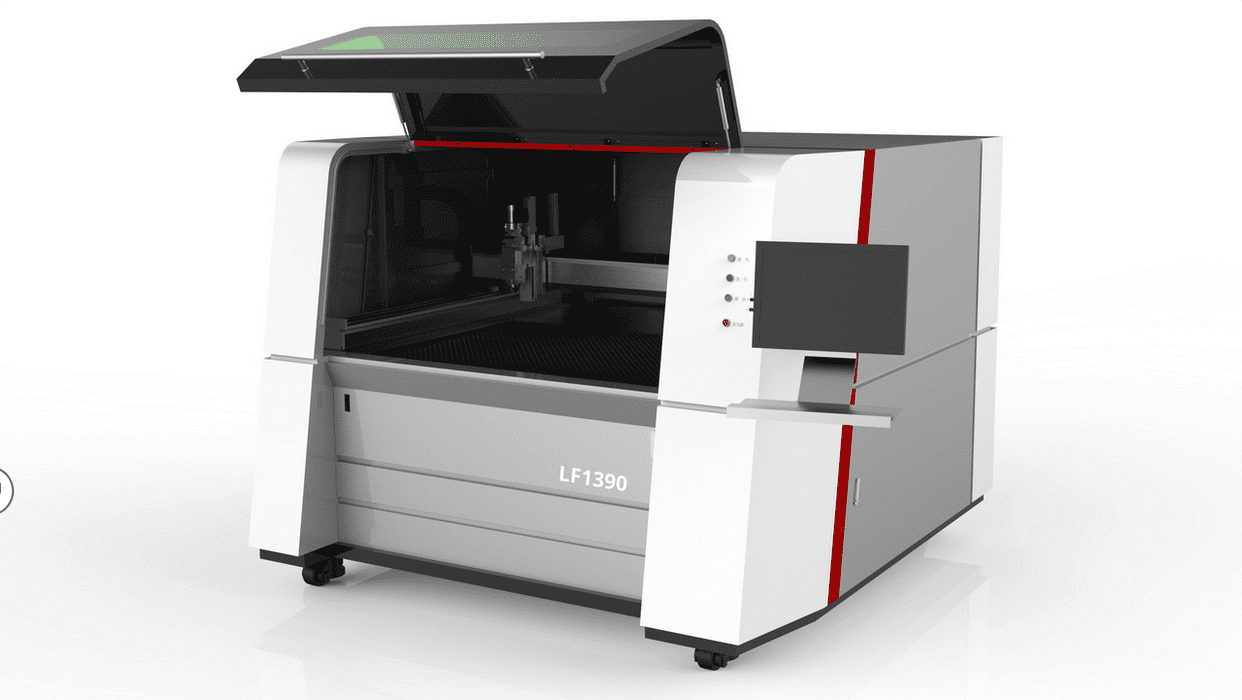

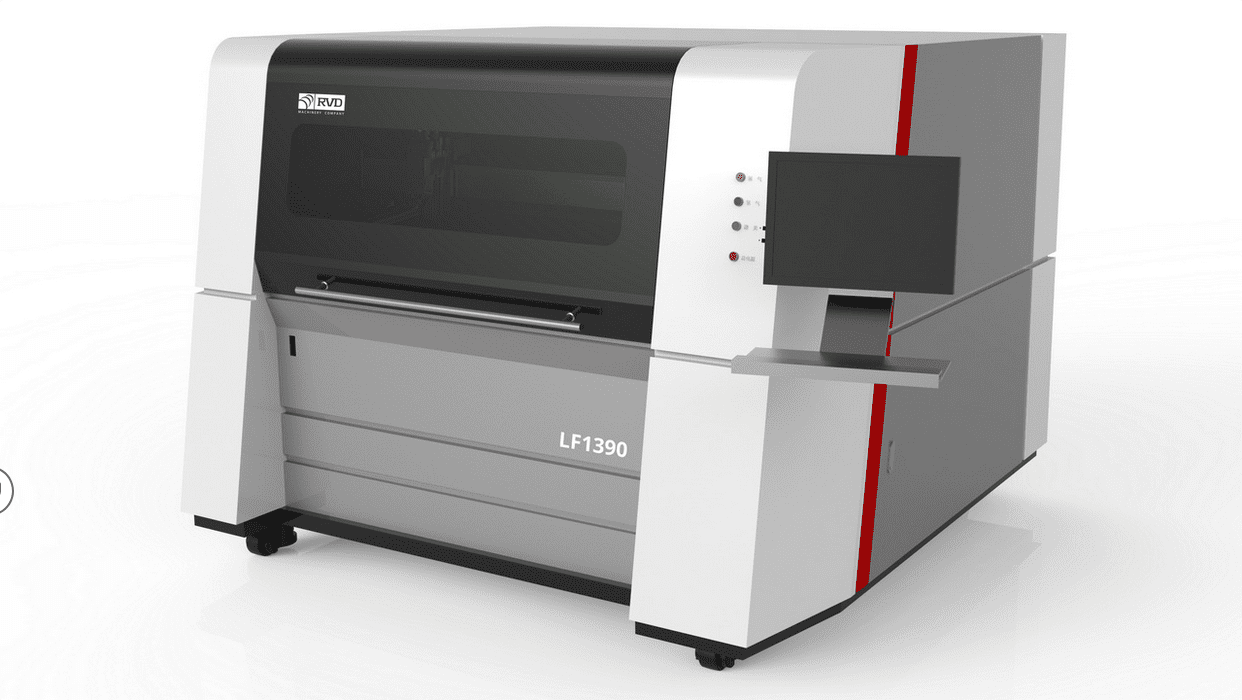

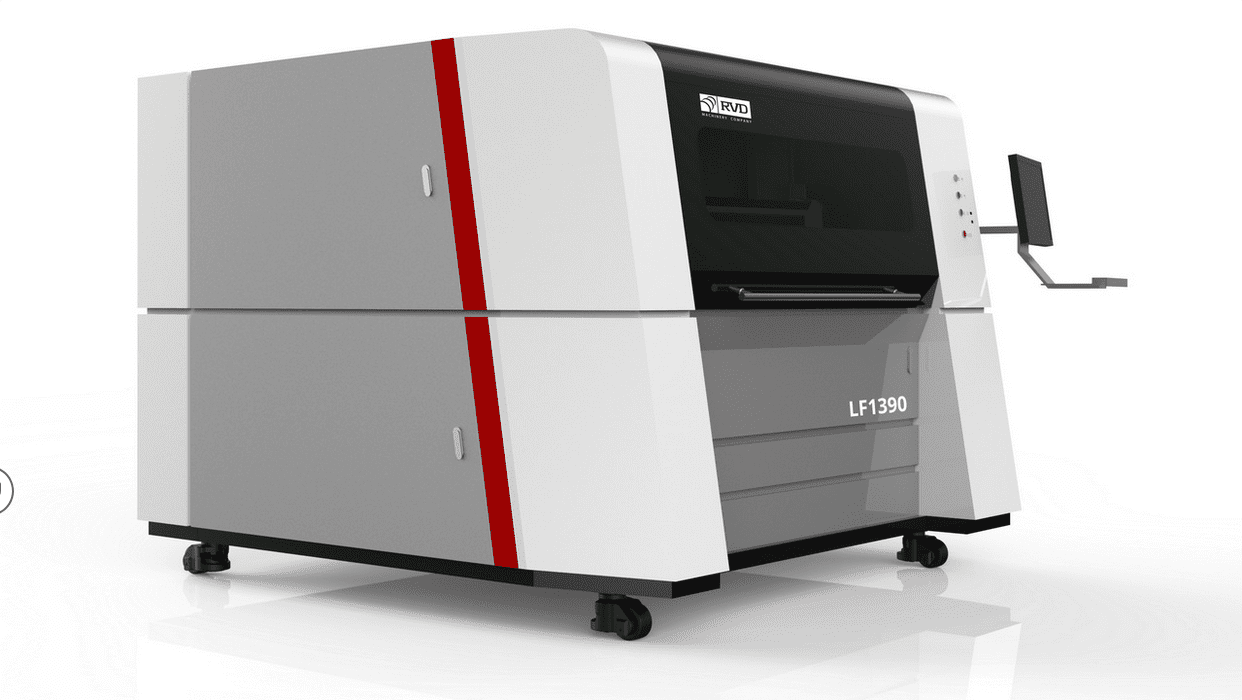

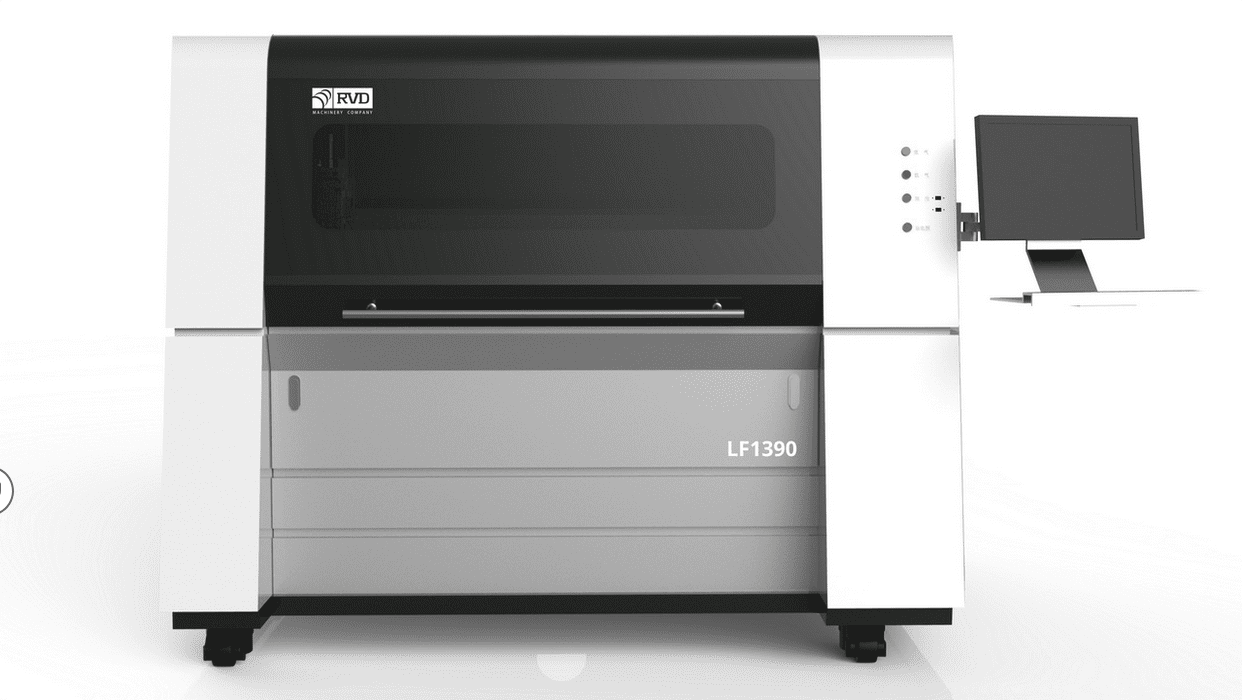

Fiber laser HP series
Industrial fiber lasers
TECHNICAL DATA
| Model | LF1390 |
| Working area X, Y | 1300x900mm |
| Laser power | 1000W |
| Laser type | FIBER |
| Laser tube cooling | Water |
| Laser output power | 0-100% |
| Drive motors | Servo |
| Max. moving speed | 40m/min |
| Reposition Accuracy | ±0.008mm |
| Working voltage | AC380В/50Hz |
| Supported files format | Plt, Dxf |
| Materials | Steel, staineless steel, cuprum, aluminium … |
| Machine weight | 3500kg |
| Packing size | 2,11х2,16х1,63m |
High precision laser for metal RVD HP series
High precision RVD fiber laser cutting machine is equipped with Japanese Panasonic servo motor, imported TBI dual driver grinding ball screw for Y axis, imported TBI grinding ball screw for X axis and Hiwin guide rail, the positioning accuracy of the machine tool can be 0.008mm and the cutting acceleration is 0.5G. The working life is more than 10 years.
