Fiber laser GA series
Industrial fiber lasers
TECHNICAL DATA
Model
Working area X, Y
Laser power
Dimensions
Positioning Accuracy
Reposition Accuracy
Max. moving speed
Maximum acceleration
LF3015GA
1500x3050mm
1500 – 8000W
8.58×2.85×2.30m
±0.03mm
±0.02mm
120m/min
1.5G
LF4020GA
2030x4020mm
10.75×3.35×2.30m
LF6025GA
2030x4020mm
15.00×4.02×2.30m

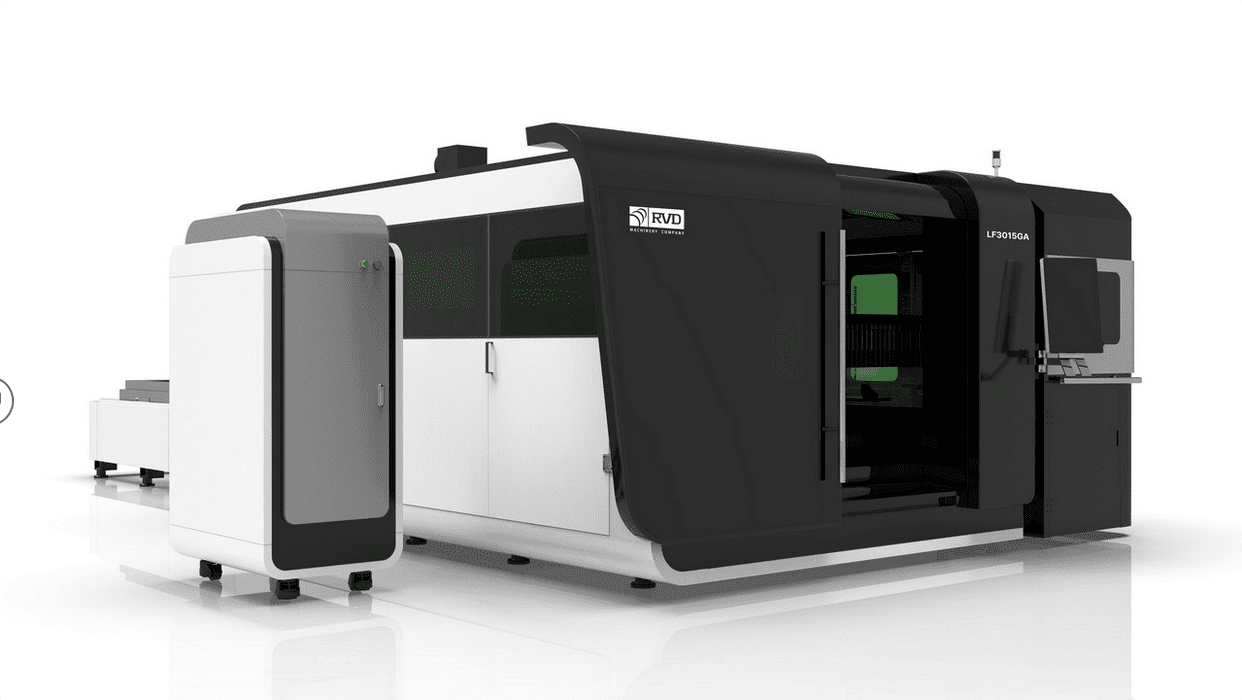

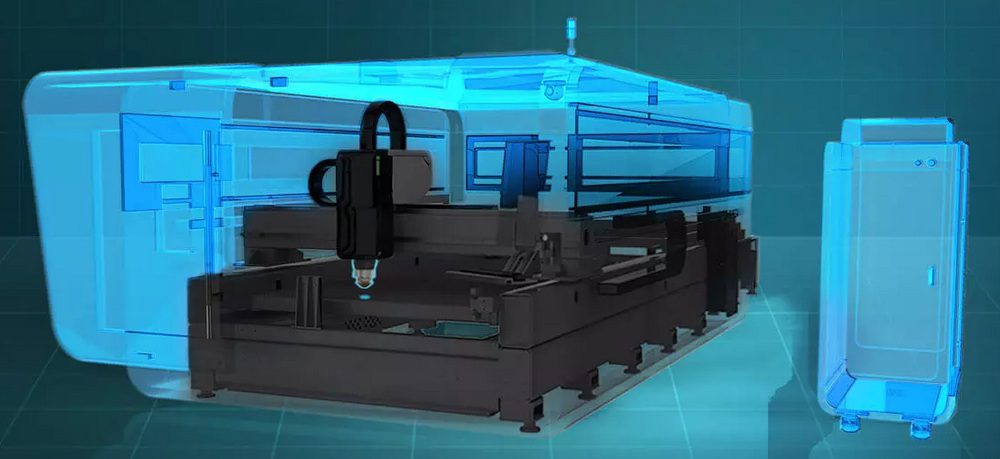

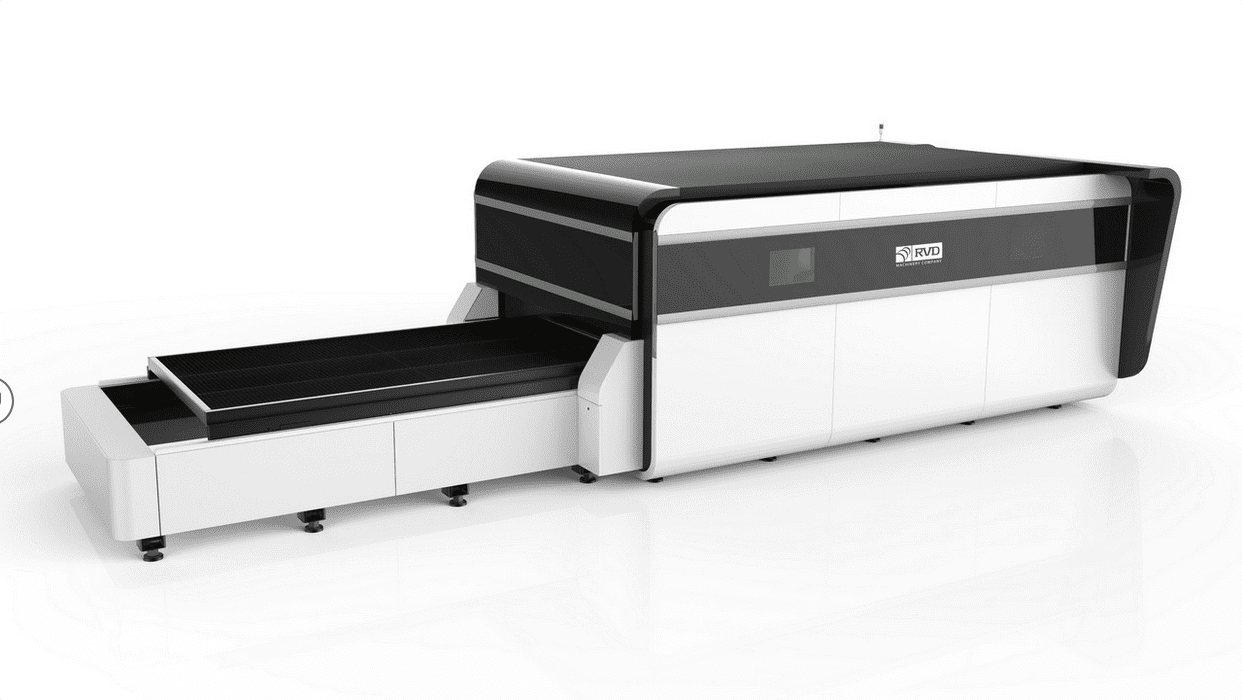

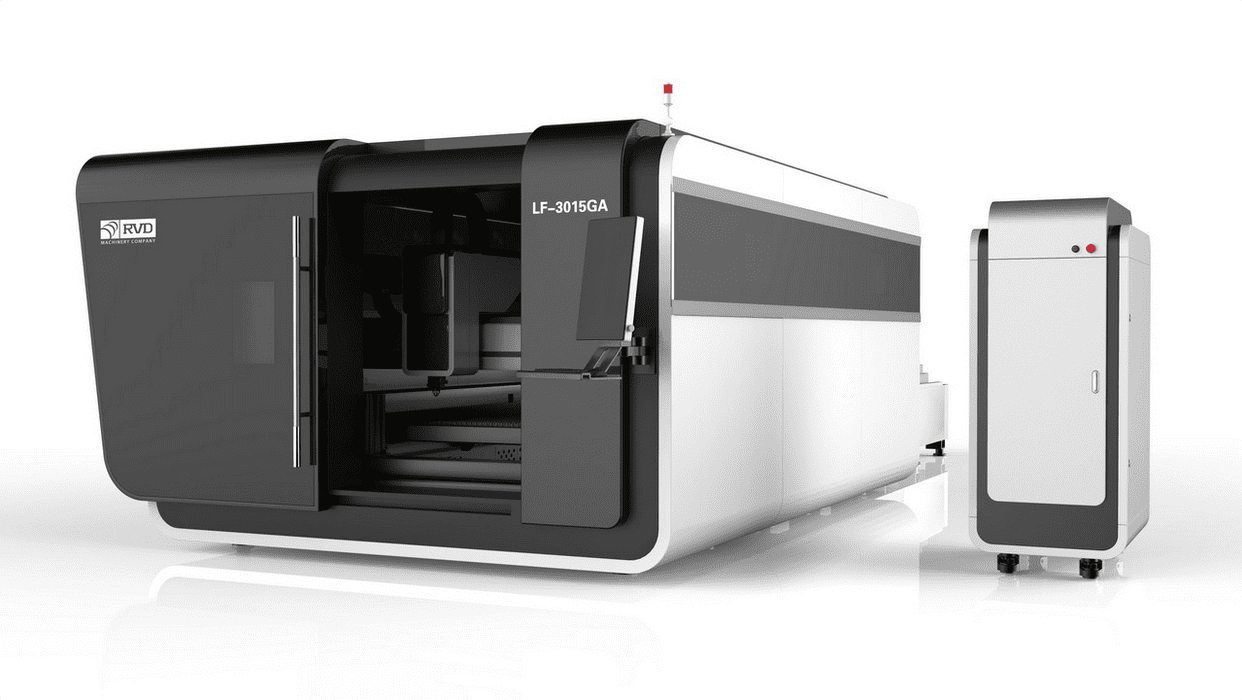

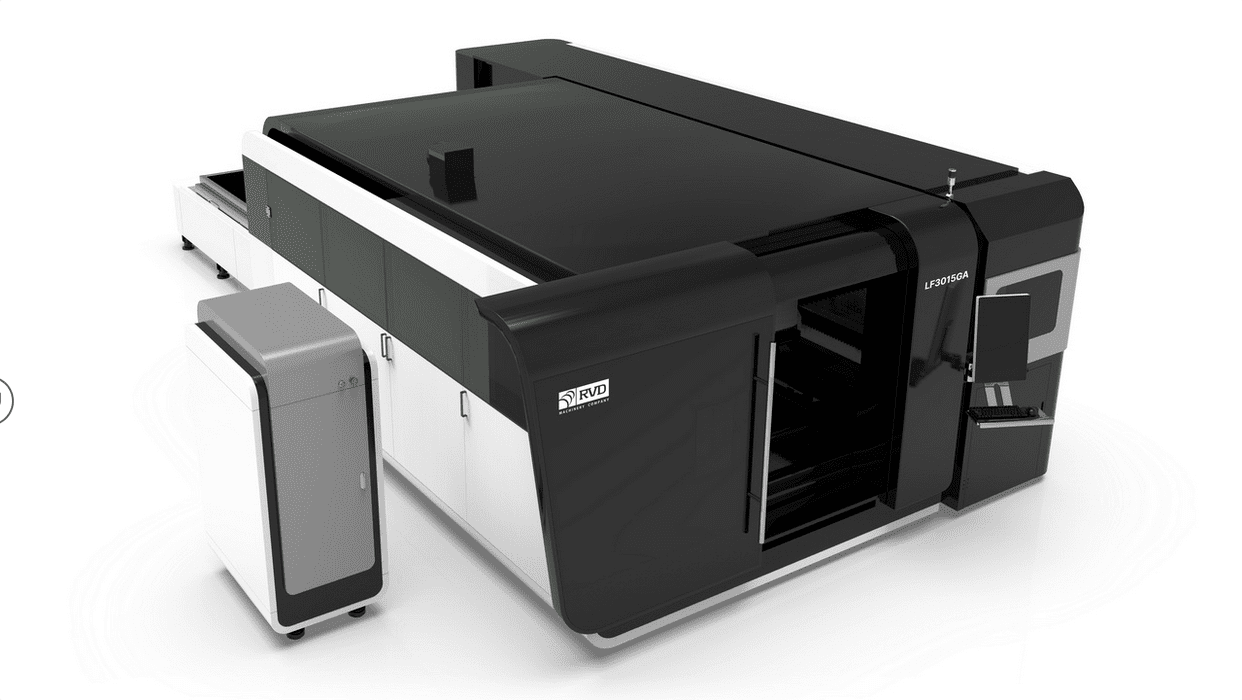

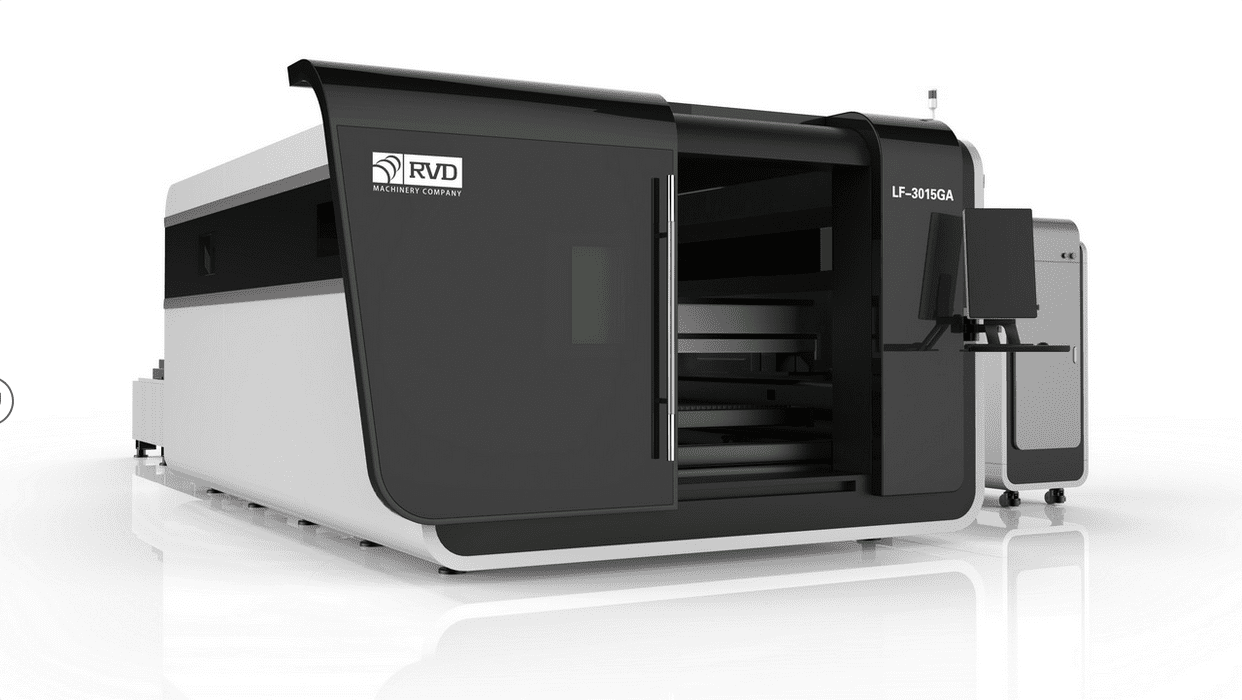

Whole covered fiber laser cutting machine RVD GA series

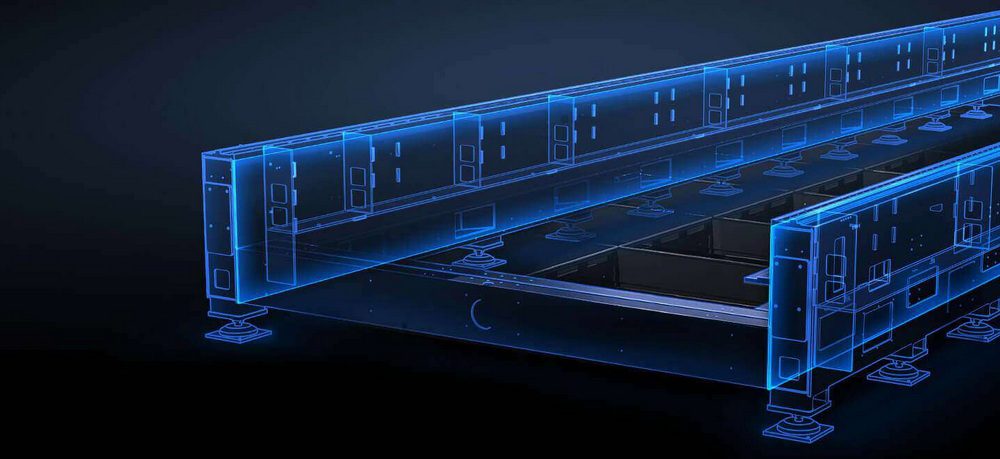

The bed is made of super-heavy steel sheet mortise and rivet welded, utilizing stress-relief annealing technology, internal reinforcement ribs plus transverse tube support, ensuring high strength and stability.

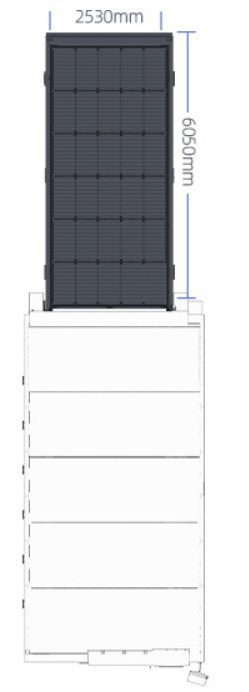

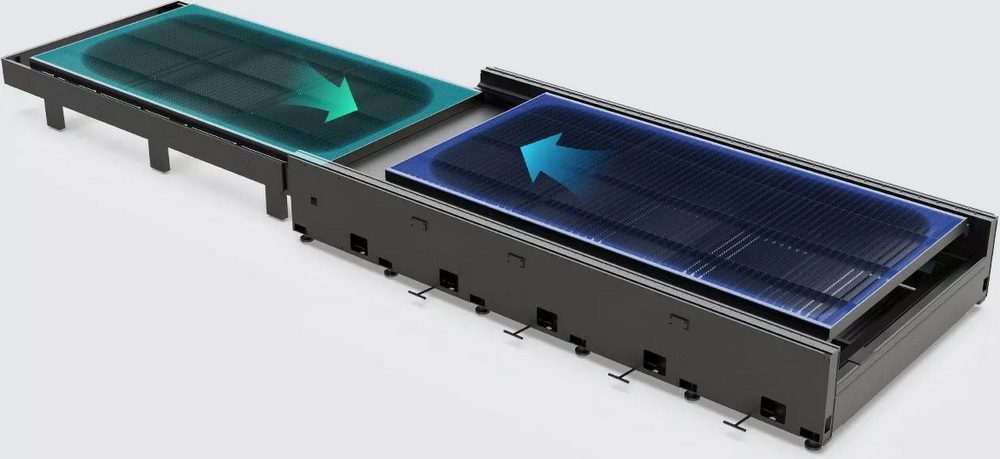

15 seconds quick exchange, significantly improving production efficiency, saving labor costs.

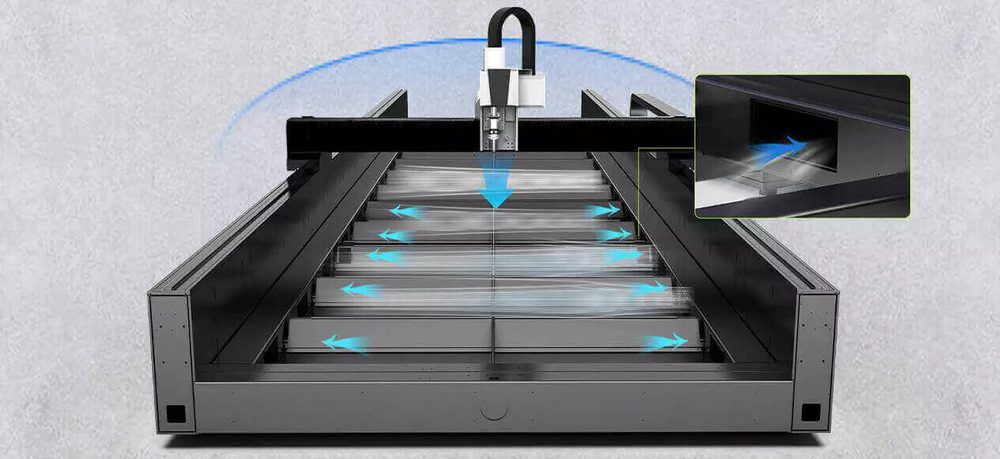

Double-row multi-row independent, high-sealing partition smoke exhaust, effectively filtering harmful gases, smoke, dust, making the production process more environmentally friendly.

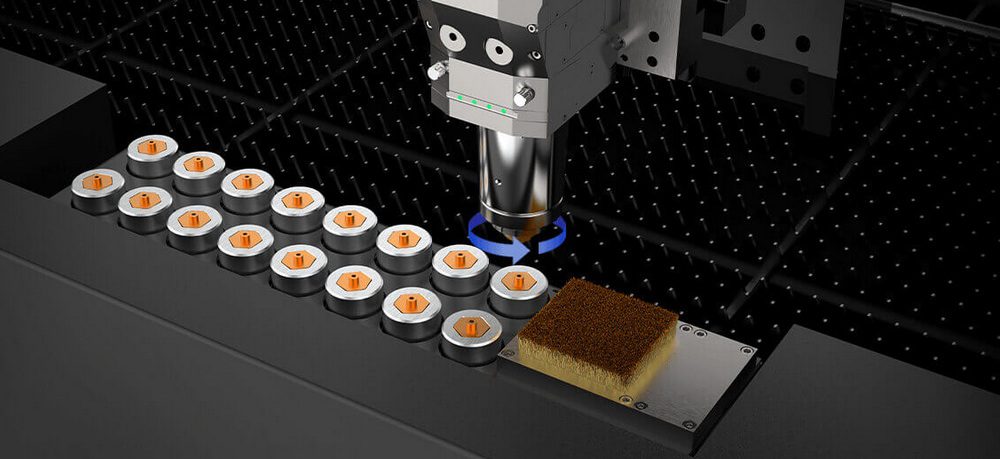

Automatic nozzle replacement – Automatically replaces nozzles, aiding automated processing.

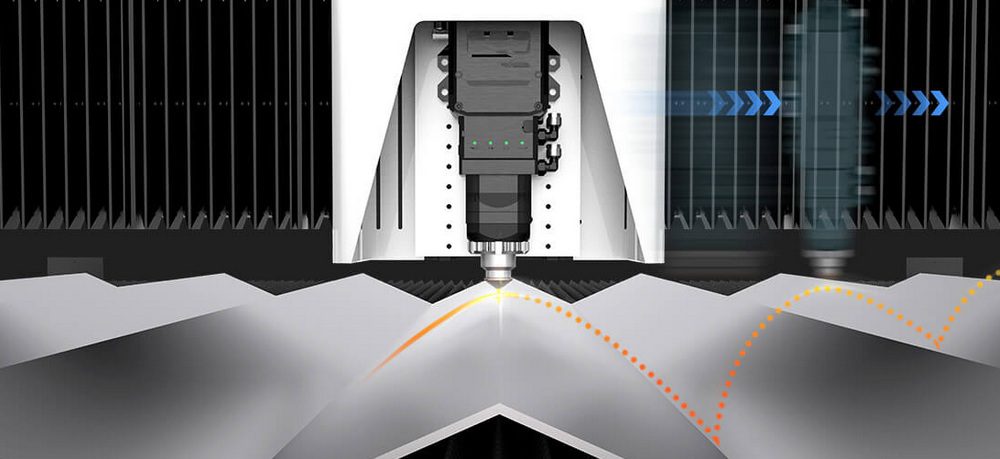

Collision sensing – Effectively reduces the risk of cutting head collisions due to workpiece warping.

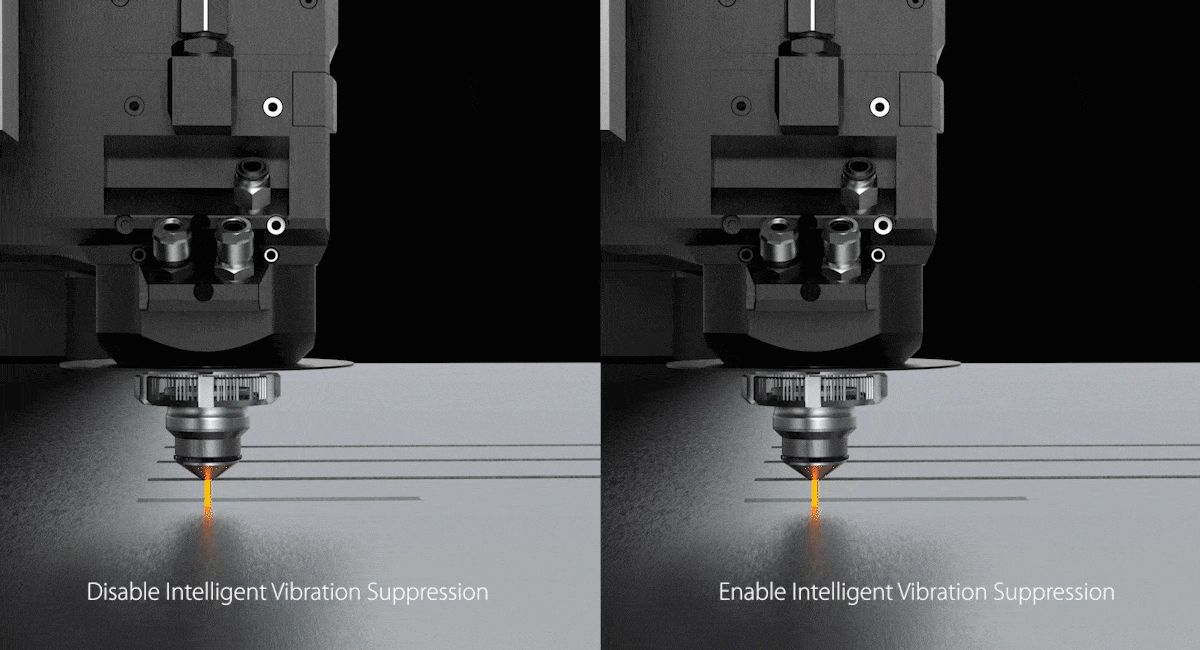

Intelligent vibration suppression – Z-axis real-time automatic adjustment, reducing cutting jitter anomalies.
