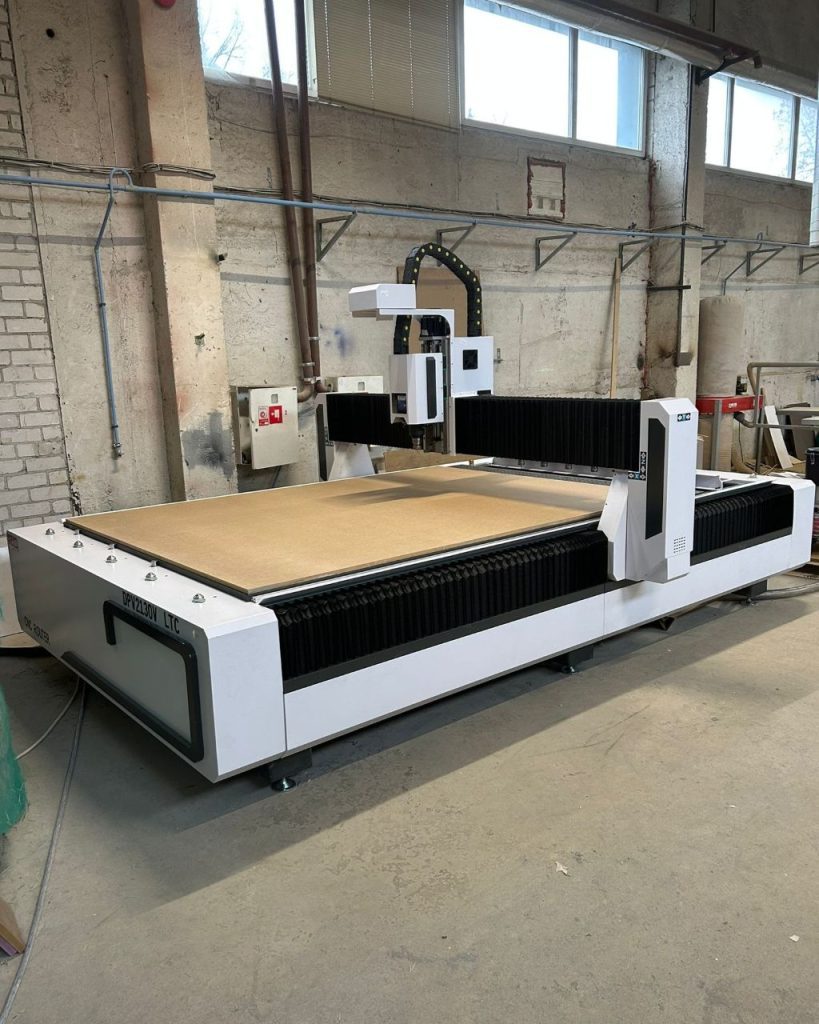

CNC router DPV2130V LTC rear

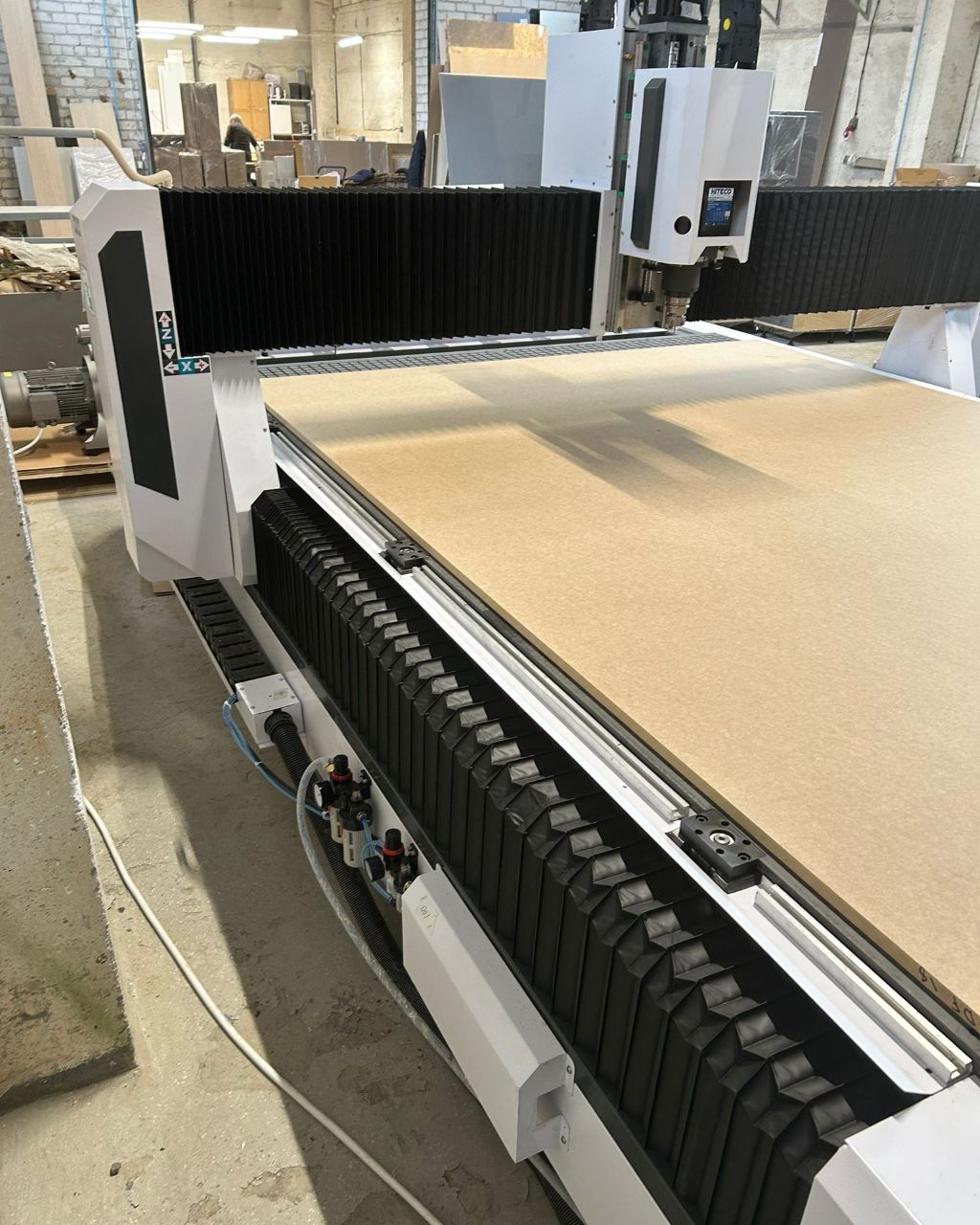

CNC router DPV2130V LTC installed in Vilnius (LT)

CNC router DPV2130V LTC installed in Vilnius (LT)

dpv2130vltc rear

Working area X,Y,Z-3000x2100x300mm;
Reinforced frame with heat treatment;

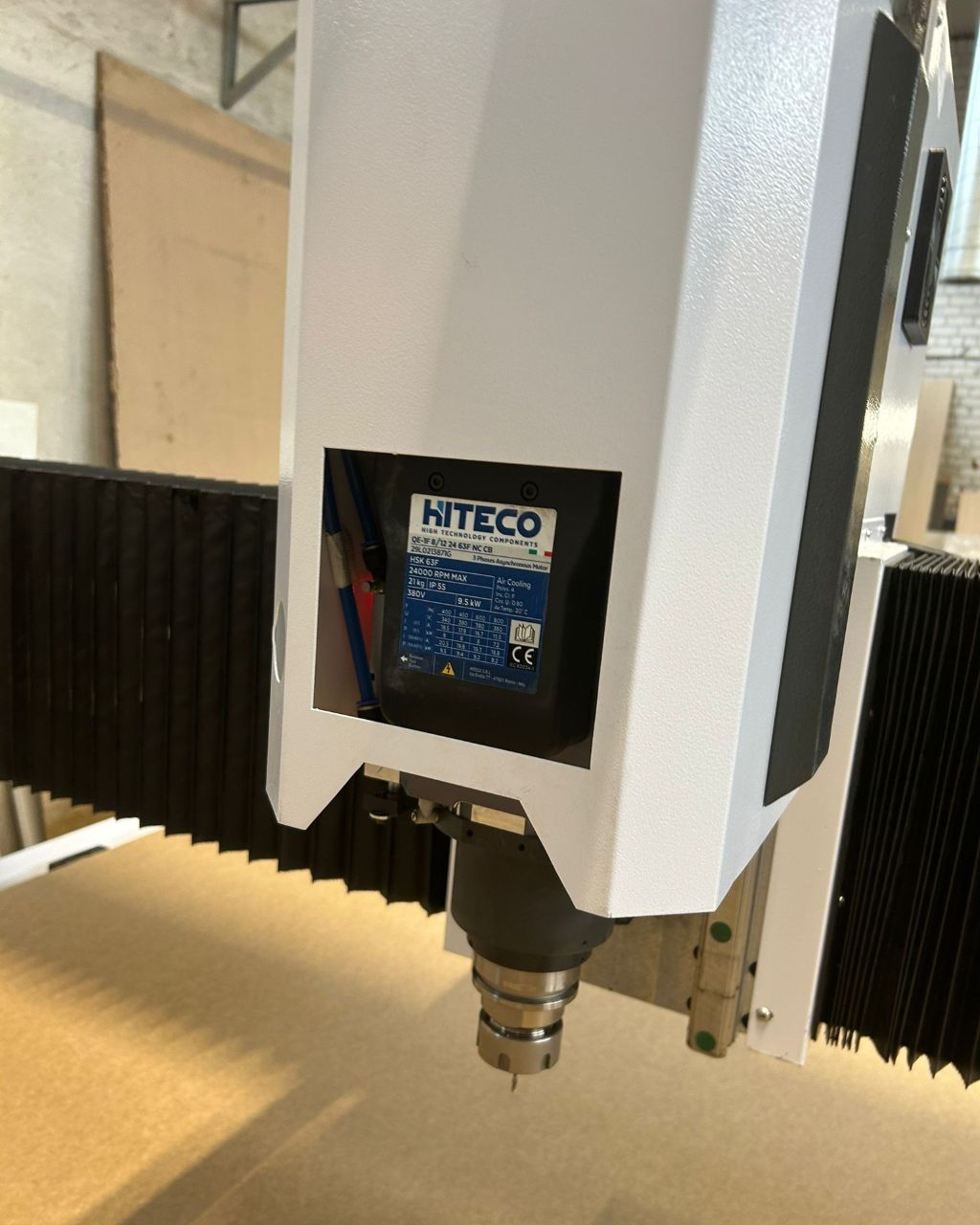

Hiteco ATC 9kW, 24000rpm, HSK F63, ceramic bearings;
Rails HIWIN 30mm for all axes;

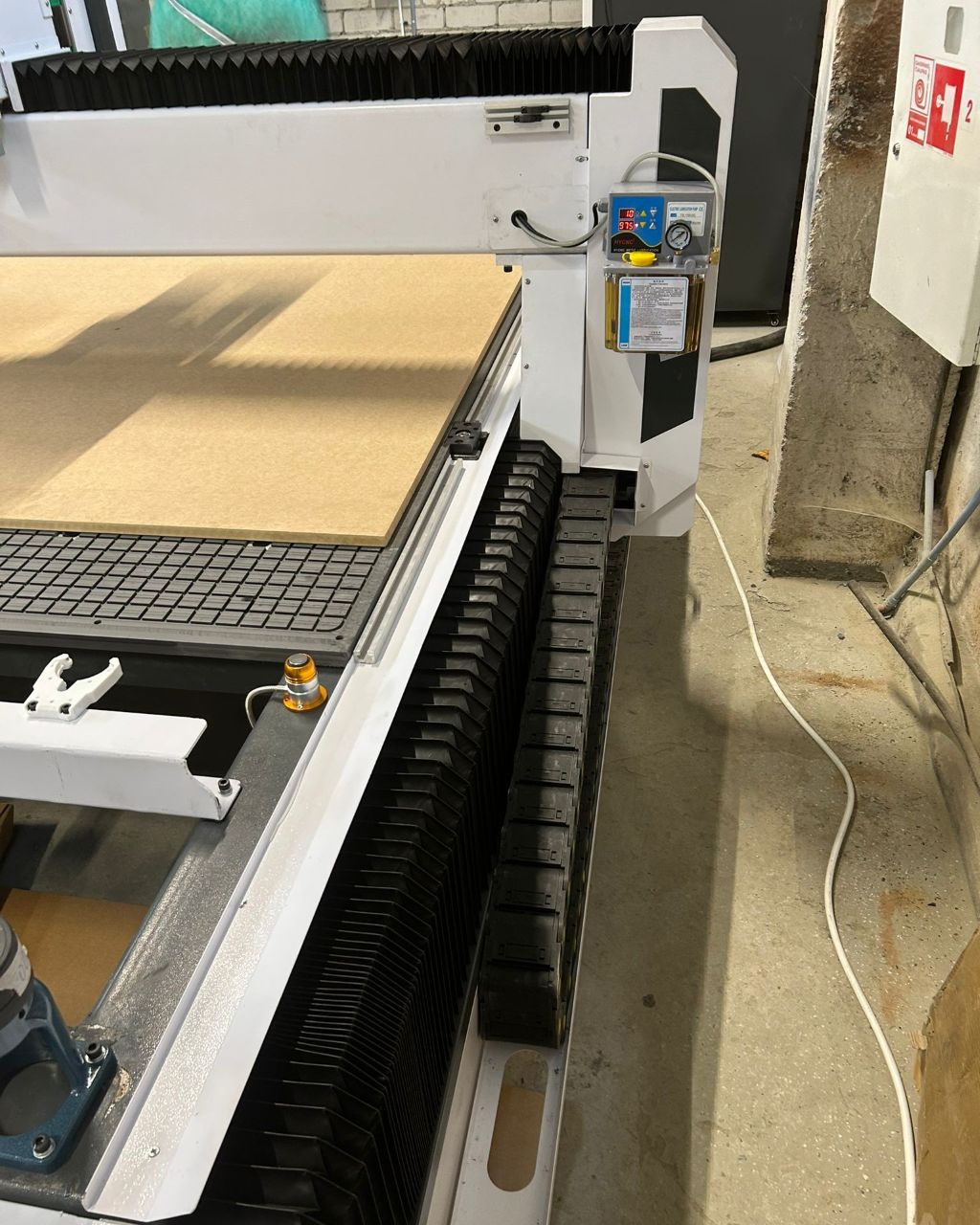

Automatic lubrication system;
Gearboxes Shimpo;
Z axis ball screw TBI SFU2505 with preload;
Leadshine Servo AC 1.5 kW;
Pneumatic stops;
Z-sensor;

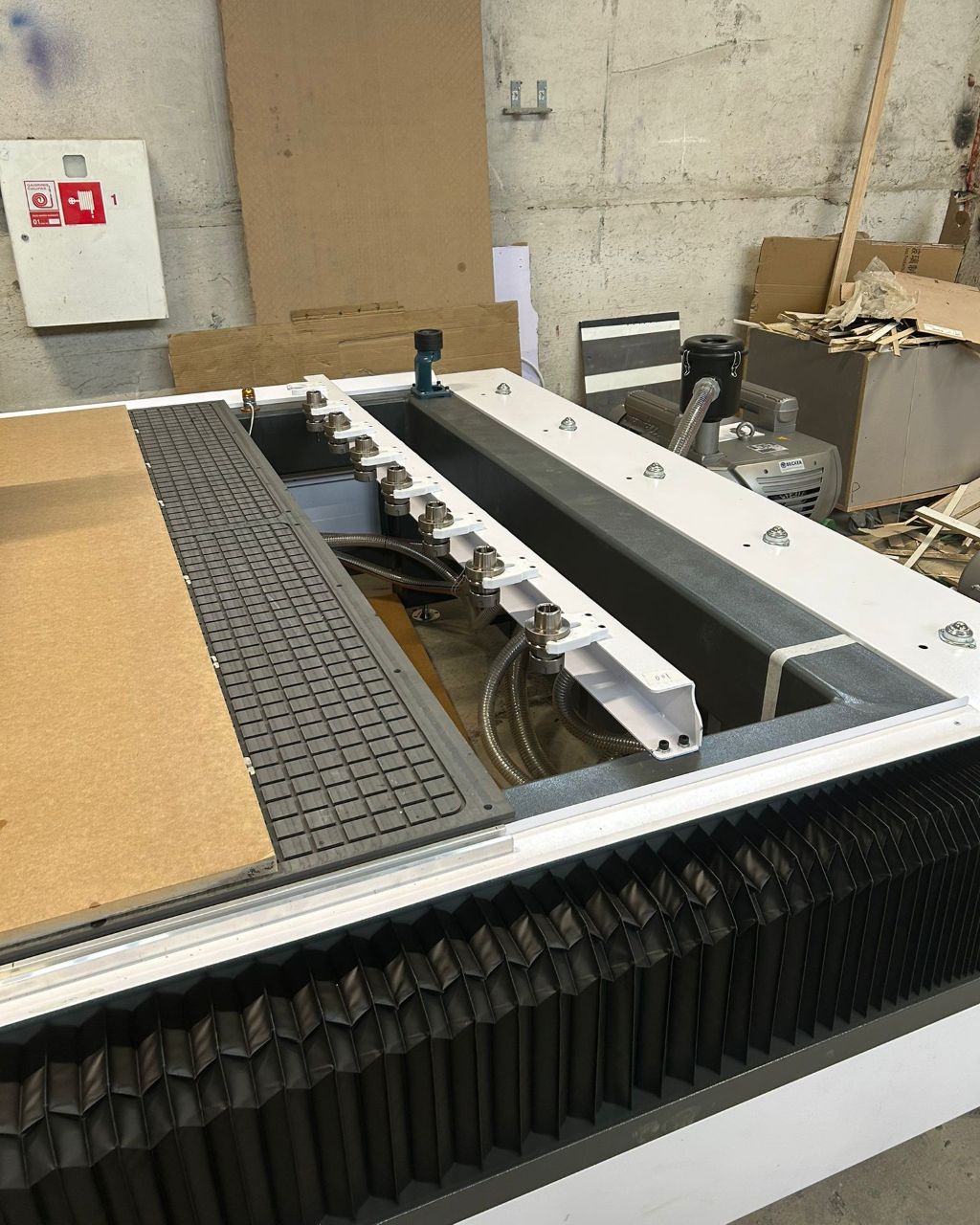

Linear magazine for 8 positions, back of machine;
Vacuum table 3×2 zones;

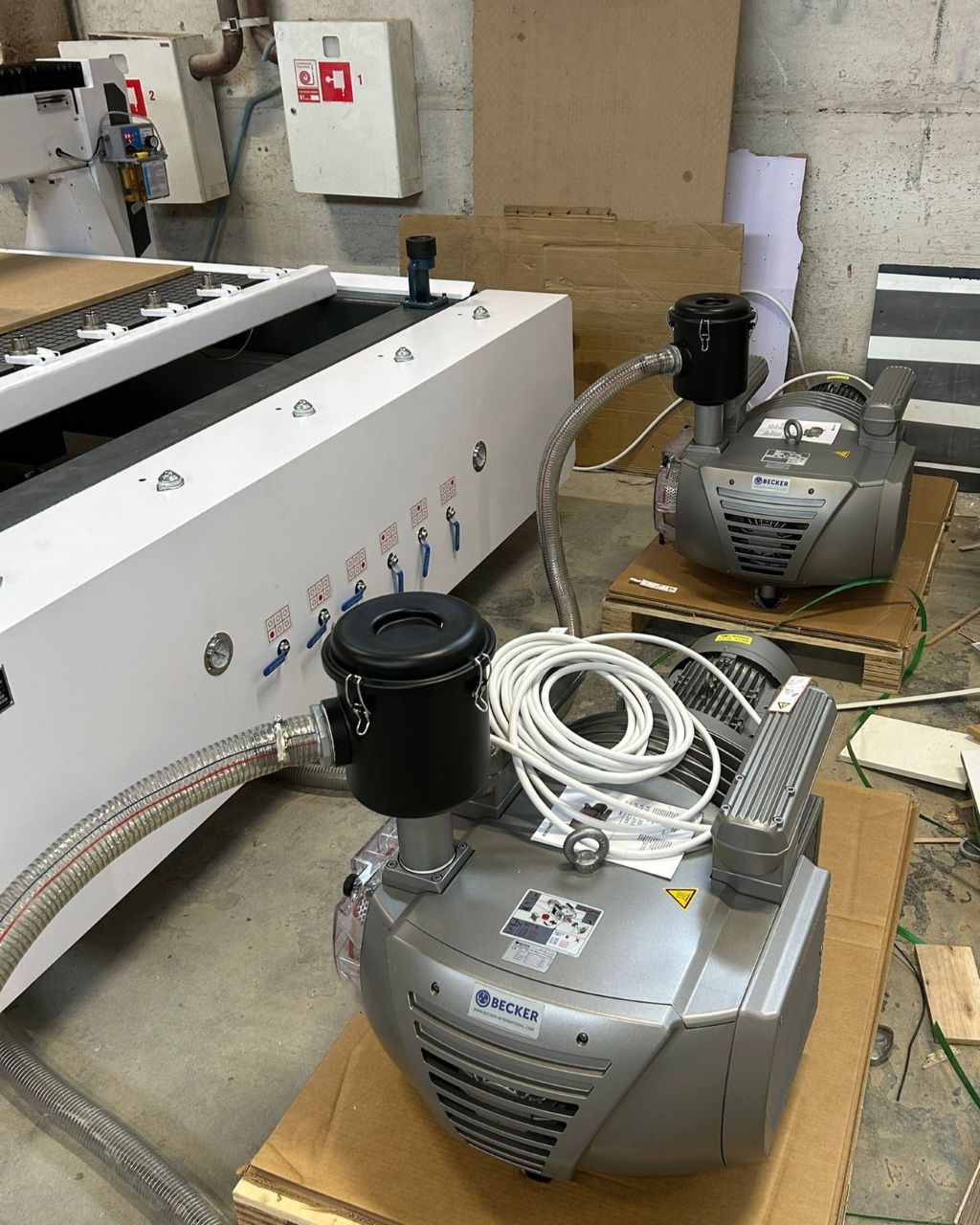

Becker VTLF 2.250 (5.5 kW, 250 m³/h);

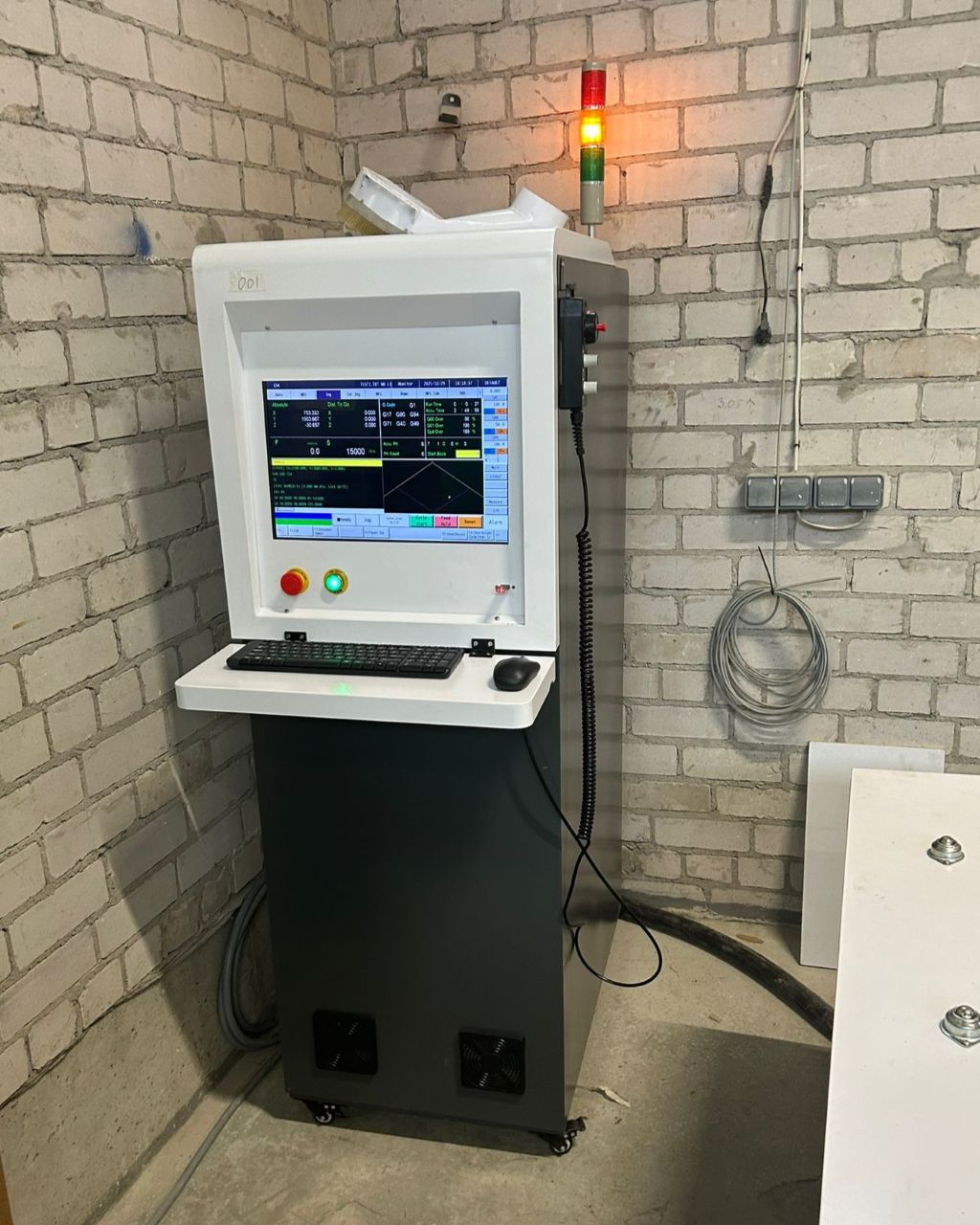

Control system Syntec FC-60CA.
