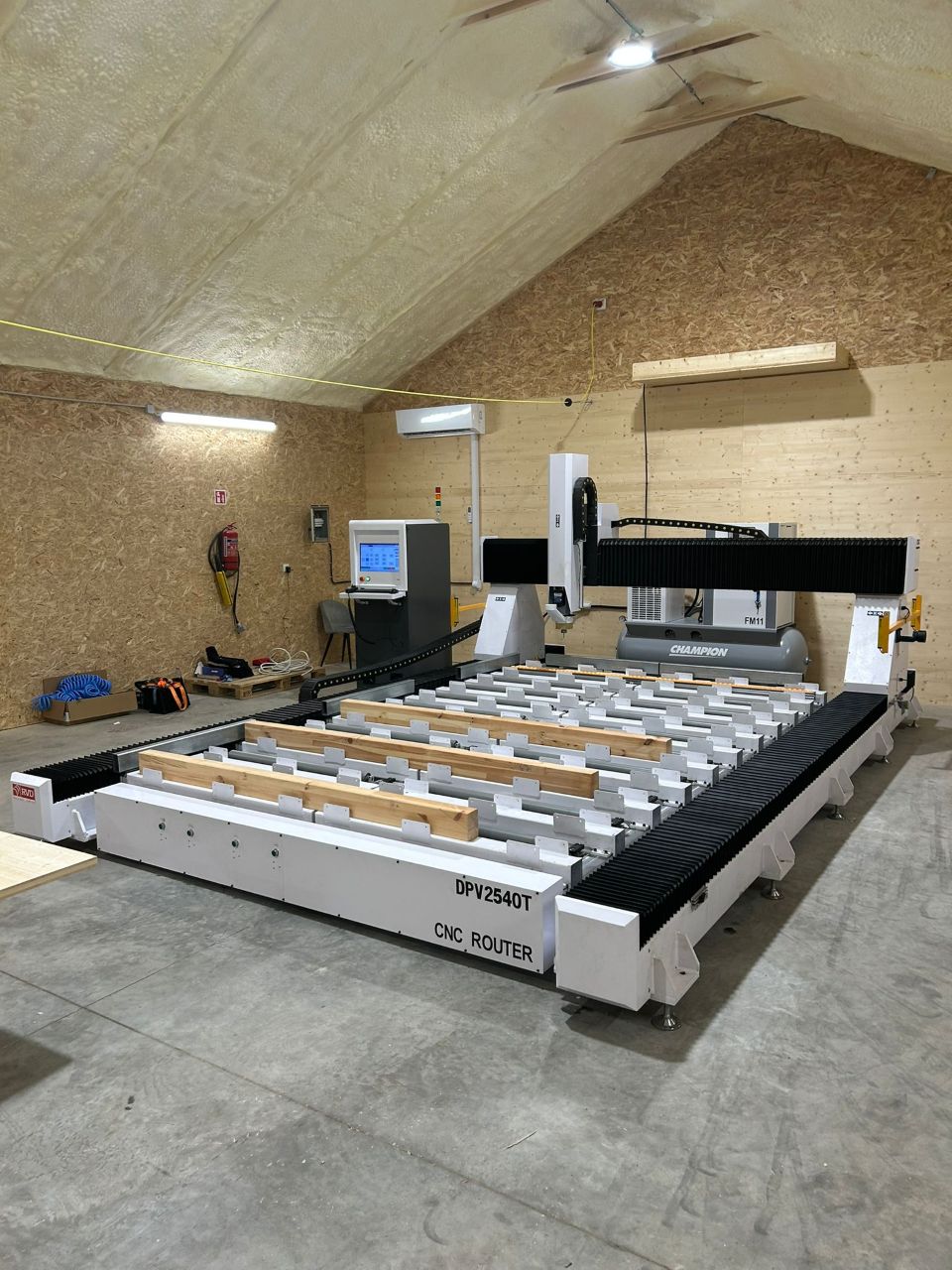

cnc router for clt panels DPV2540CLT installed in VERPENA (LT).

Working area X,Y,Z-2500x4000x400mm;
Wood bar table for CLT panels;
Rollers for table with up&down button;
Pneumatic stops left and back side;
Pneumatis pushers right side;
Rails HiWin 30mm for all axes;
Gearboxes Nidec-Shimpo;
Fulling inverter 11kw;
Panasonic AC Servo 1,5kW;
Hiteco ATC 12kW, 24000rpm, HSK F63;
Hollders HSK F63-ER32;
Z-sensor;
Automatic lubrication system;
Syntec FC-60CA control system.
